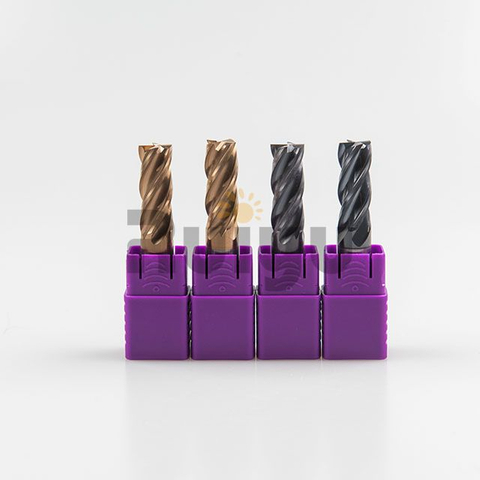

Square End Mill


From general milling tasks to various machining operations, carbide square end mills find wide-ranging applications in industries such as aerospace, automotive, mold making, and general machining. They are versatile tools that can tackle multiple milling requirements with precision and efficiency. Their unique features and design make them indispensable in a wide range of applications, from milling flat surfaces to creating slots and contours.



Square End Mill Features:

1、High Heat Resistance:

 Carbide end mills can withstand high temperatures generated during the milling process, allowing for faster cutting speeds and increased productivity.


2、Superior Cutting Performance:

The hardness and heat resistance of carbide square end mills contribute to their superior cutting performance.


3、Stability and Rigidity:

Carbide square end mills offer high rigidity and stability during cutting, minimizing tool deflection and vibrations.


4、Reduced Chatter:

The rigidity and stability of carbide square end mills help minimize chatter during the milling process.




Square End Mill Advantages:

1、Exceptional Hardness:

 Carbide square end mills are renowned for their exceptional hardness. This hardness allows them to maintain their cutting edge for longer periods, resulting in extended tool life and reduced tool replacement costs.


2、High Heat Resistance:

Carbide end mills exhibit high heat resistance, enabling them to withstand the elevated temperatures generated during the machining process. This feature allows for higher cutting speeds and increased productivity.


3、Superior Cutting Performance:

The combination of hardness and heat resistance in carbide square end mills contributes to their superior cutting performance. They can efficiently remove material and create precise square-shaped features with excellent surface finishes.


4、Increased Productivity:

With their exceptional cutting performance and heat resistance, carbide square end mills contribute to increased productivity. They allow for higher cutting speeds, reducing machining time and increasing overall efficiency.


5、Excellent Chip Evacuation:

Carbide end mills often feature multiple flutes, which aid in efficient chip evacuation. This helps prevent chip clogging and enhances the surface finish of the machined part.


6、Stability and Rigidity:

Carbide square end mills offer high levels of stability and rigidity during cutting. This characteristic minimizes tool deflection and vibrations, resulting in improved accuracy and dimensional precision.


7、Wide Range of Sizes and Configurations:

Carbide square end mills are available in a wide range of sizes, flute configurations, and cutting edge geometries. This allows for precise tool selection based on specific machining requirements.




Square End Mill Coatings:

The purpose of applying a coating to a carbide end mill is to enhance its performance, durability, and overall effectiveness in various machining operations.

1、Titanium Nitride (TiN):

TiN is a popular coating choice for carbide square end mills. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.


2、Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.


3、Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.


4、Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.




Square End Mill Usage:

1、Milling Flat Surfaces:

Carbide square end mills are widely used for milling flat surfaces on various materials. They can efficiently remove material across the entire surface, creating smooth and precise finishes.


Slotting: Carbide square end mills are ideal for creating slots in workpieces. Whether it's a keyway, T-slot, or general slotting operation, these end mills can accurately cut the desired slot dimensions with ease.


2、Profiling:

Carbide square end mills excel at profiling tasks, allowing for the creation of intricate profiles and shapes on workpieces. They can follow designated paths and contours, resulting in precise and well-defined profiles.


3、Contouring:

 Carbide square end mills can be used for contouring applications where the goal is to create curved or rounded features. While not their primary function, they can perform light contouring operations with proper toolpath strategies.


4、Facing:

When it comes to facing operations, carbide square end mills are commonly employed. They can remove material from the face of a workpiece, ensuring it is flat, smooth, and perpendicular to the selected reference surface.


5、Plunging:

Carbide square end mills are suitable for plunging into a workpiece, allowing for the creation of holes or pockets. They can efficiently remove material in a controlled manner, resulting in precise plunging operations.


6、Side Milling:

Carbide square end mills can perform side milling tasks where material is removed from the sides of a workpiece. This technique is often used to create grooves, shoulders, or contours along the edge of a part.
