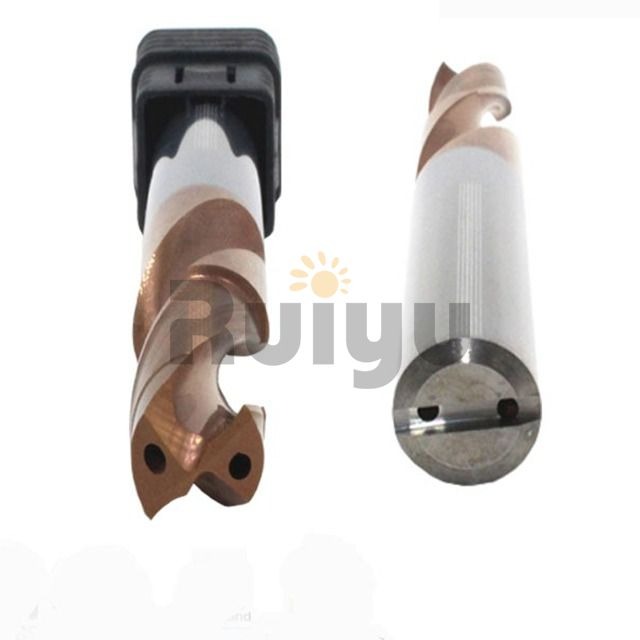

COOLANT-DRILL 3

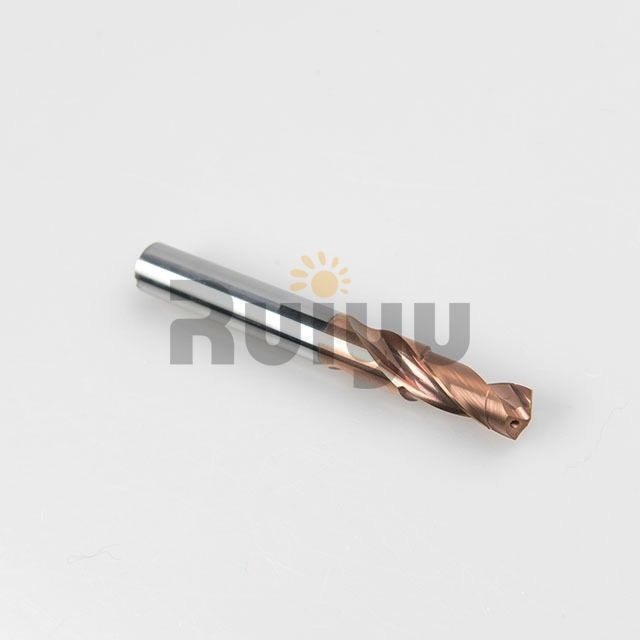

COOLANT-DRILL 6

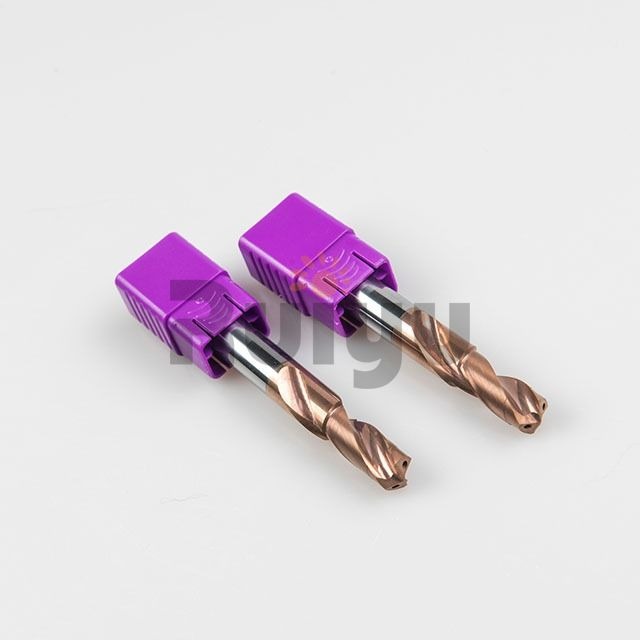

COOLANT-DRILL 9

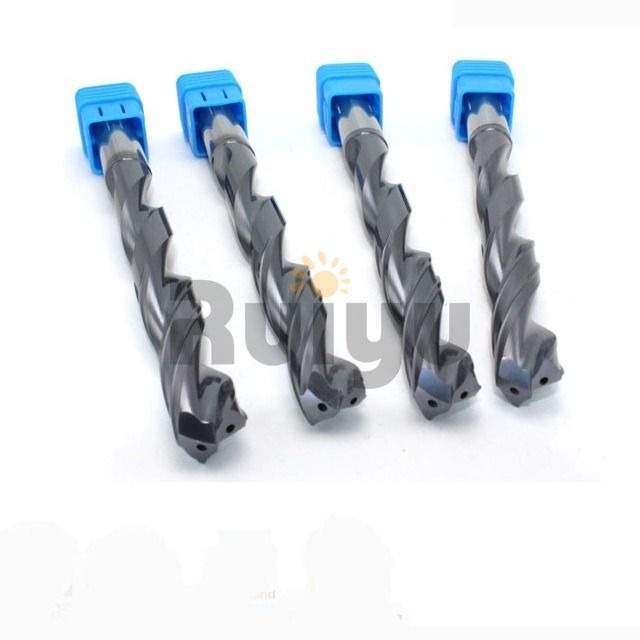

COOLANT-DRILL 1

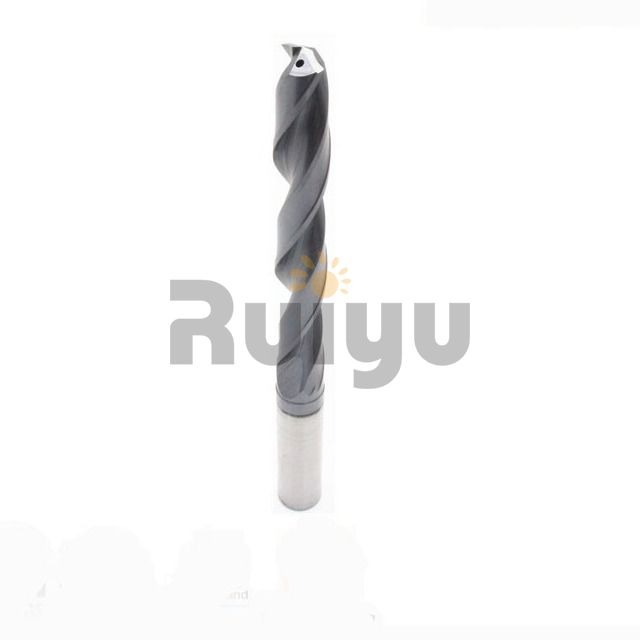

Carbide-Coolant-Drill

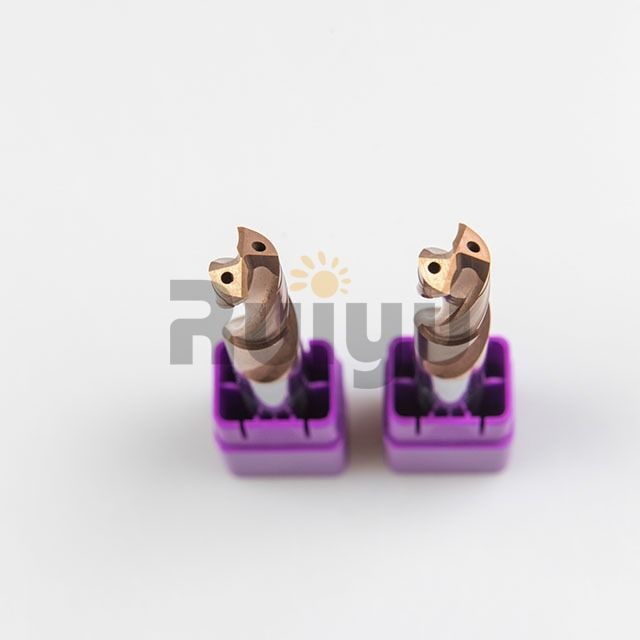

COOLANT-DRILL 8



Internal Cooling Carbide Drill Manufacturer


Internal Cooling Carbide Drill Features


1、Carbide Material:

Internal cooling carbide drills are typically made from high-quality carbide materials. Carbide is known for its hardness, durability, and resistance to heat, making it ideal for drilling through tough materials like metal and alloys.


2、Internal Coolant Channels:

One of the standout features of these drills is the presence of internal coolant channels. These channels allow for the efficient delivery of coolant or cutting fluid directly to the cutting edge of the drill bit. This helps in dissipating heat, reducing friction, and prolonging tool life.


3、Coolant Delivery Options:

Internal cooling carbide drills offer various coolant delivery options, such as through-spindle coolant, which can be customized to suit the specific requirements of the machining process. This ensures that the cutting edge remains cool and lubricated during operation.


4、High Precision:

These drills are designed for high-precision drilling operations. They can achieve tight tolerances and produce accurate holes, which is crucial in industries like aerospace and automotive manufacturing.


5、Chip Evacuation:

Efficient chip evacuation is essential in drilling processes to prevent tool wear and maintain surface finish. Internal cooling carbide drills often have special flute designs and chip breakers that aid in effective chip removal.


6、Versatility:

These drills are suitable for a wide range of materials, including steels, stainless steel, cast iron, and non-ferrous metals. They are available in various sizes and geometries to accommodate different drilling applications.


7、Long Tool Life:

The combination of carbide material and internal cooling capabilities significantly extends the tool life of these drills. This results in reduced downtime and lower tool replacement costs.


8、Reduced Heat Generation:

Internal cooling helps in reducing the heat generated during drilling, which can be especially beneficial when working with heat-sensitive materials or when precision is critical.


9、Improved Surface Finish:

The combination of precise cutting and efficient cooling contributes to a smoother surface finish on the drilled holes, reducing the need for secondary finishing operations.


10、Compatibility:

Internal cooling carbide drills are compatible with various drilling machines, including CNC machining centers, which makes them versatile and widely used in modern manufacturing processes.


Internal Cooling Carbide Drill Advantages:


1、Extended Tool Life:

Internal cooling helps dissipate heat generated during drilling, reducing tool wear and extending the life of the carbide drill. This leads to cost savings by reducing the frequency of tool replacement.


2、High Precision:

These drills are designed for accuracy and precision. They can achieve tight tolerances and produce consistently accurate holes, which is essential in industries requiring precise machining, such as aerospace and medical device manufacturing.


3、Improved Surface Finish:

The combination of precise cutting and efficient cooling results in a smoother surface finish on drilled holes. This can reduce or eliminate the need for secondary finishing operations, saving time and labor.


4、Enhanced Chip Evacuation:

Internal cooling carbide drills often have specially designed flute geometries and chip breakers that aid in efficient chip evacuation. This helps prevent chip buildup, which can lead to tool breakage and poor hole quality.


5、Versatility:

These drills are suitable for a wide range of materials, including metals, alloys, and composites. They can handle both soft and hard materials, making them versatile for various manufacturing applications.


6、Reduced Heat Generation:

The internal coolant channels deliver cutting fluid directly to the cutting edge, reducing heat buildup. This is especially beneficial when working with heat-sensitive materials that can be damaged by excessive heat.


7、Increased Productivity:

Internal cooling carbide drills can operate at higher cutting speeds and feed rates due to improved heat dissipation and reduced tool wear. This results in faster machining processes and increased productivity.


8、Cost Savings:

Longer tool life, reduced downtime for tool changes, and improved efficiency all contribute to cost savings in machining operations. The initial investment in these drills often pays off in the long run.


9、Compatibility:

Internal cooling carbide drills are compatible with various drilling machines, including CNC machining centers. They can be easily integrated into existing machining setups.


10、Consistency:

These drills provide consistent performance over their lifespan, ensuring that the quality of drilled holes remains high throughout production runs.


11、Environmental Benefits:

The use of internal cooling carbide drills can reduce the environmental impact of machining operations by minimizing the need for coolant wastage and disposal.


Internal Cooling Carbide Drill Coatings:


The purpose of applying a coating to a Internal Cooling Carbide drill is to enhance its performance, durability, and overall effectiveness in various machining operations.


Titanium Nitride (TiN):

TiN is a popular coating choice for Internal Cooling Carbide drill. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.


Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.


Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.


Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.


Internal Cooling Carbide Drill Applications


1、Aerospace Industry:

Drilling precision holes in aircraft components, such as engine parts, landing gear, and airframes.

Machining complex geometries in aerospace materials like titanium, aluminum, and composites.


2、Automotive Manufacturing:

Drilling engine blocks, cylinder heads, and transmission components.

Creating holes for mounting brackets, exhaust systems, and suspension components.


3、Medical Device Manufacturing:

Producing precise holes in medical implants, such as orthopedic screws and plates.

Drilling holes in surgical instruments and medical equipment.


4、Oil and Gas Industry:

Drilling holes in oil rig components and equipment.

Machining parts for downhole tools and drilling equipment.


5、Mold and Die Making:

Creating holes for ejector pins and cooling channels in injection molds.

Drilling holes for mold cavities and inserts.


6、General Machining:

Drilling holes in structural steel for construction applications.

Machining parts for the electronics industry, such as heat sinks and connectors.


7、Metalworking and Fabrication:

Drilling holes in metal sheets, pipes, and profiles for various fabrication projects.

Creating holes for fasteners, connectors, and structural components.


8、Renewable Energy:

Drilling holes in wind turbine components, including gearbox housings and tower sections.

Manufacturing parts for solar panel installations.


9、Die Casting:

Drilling holes in die cast components used in the automotive, consumer electronics, and appliance industries.


10、Railroad Industry:

Drilling holes in railcar components, locomotive parts, and railway infrastructure.

Fabricating components for the railway industry.


11、Marine Industry:

Machining holes in shipbuilding components, such as hulls, propellers, and marine engines.

Creating holes in offshore drilling equipment.


12、Electronic and Semiconductor Manufacturing:

Drilling precise holes in electronic enclosures and printed circuit boards (PCBs).

Manufacturing semiconductor components with high precision.


13、Tool and Die Industry:

Producing holes in tool and die sets used in various manufacturing processes.

Machining components for jigs, fixtures, and molds.


14、Defense and Military:

Drilling holes in military vehicle components, weapon systems, and defense equipment.

Manufacturing parts for aircraft, naval vessels, and defense systems.


15、Mining and Construction Equipment:

Creating holes in heavy machinery components for mining and construction applications.

Machining components for excavators, bulldozers, and drilling rigs.


Internal cooling carbide drills are versatile tools that excel in precision drilling and can handle a wide range of materials, making them essential in numerous manufacturing and machining applications across diverse industries.


Video Of Internal Cooling Carbide Drill


FAQs for Internal Cooling Carbide Drill


1、What is an internal cooling carbide drill?

An internal cooling carbide drill is a cutting tool designed for precision drilling applications. It is made from carbide material and features internal coolant channels for efficient heat dissipation during drilling.


2、How does internal cooling work in these drills?

Internal cooling involves the delivery of coolant or cutting fluid directly to the cutting edge of the drill through internal channels. This helps keep the drill and workpiece cool during the drilling process, reducing friction and heat buildup.


3、What are the advantages of using internal cooling carbide drills?

Advantages include extended tool life, high precision, improved surface finish, enhanced chip evacuation, versatility across materials, reduced heat generation, increased productivity, and cost savings.


4、What materials can internal cooling carbide drills drill through?

These drills can handle a wide range of materials, including metals like steel, stainless steel, aluminum, and titanium, as well as composites and other heat-sensitive materials.


5、Are internal cooling carbide drills suitable for CNC machining?

Yes, they are compatible with CNC machining centers and can be used for automated drilling operations, ensuring precision and efficiency.


6、Do these drills require special maintenance or care?

Routine maintenance includes cleaning and inspecting the drills for wear. Proper coolant concentration and flow rate should also be maintained for optimal performance.


7、Can internal cooling carbide drills be resharpened?

While some drills can be resharpened, carbide drills are generally more challenging to sharpen than traditional high-speed steel drills. It's often more cost-effective to replace them when they become dull.


8、What types of industries commonly use these drills?

Internal cooling carbide drills are used in industries such as aerospace, automotive manufacturing, medical device manufacturing, oil and gas, mold and die making, and many others that require precision drilling.


9、Are there different geometries and sizes available for these drills?

Yes, these drills come in various geometries and sizes to suit different drilling applications, including standard twist drills, step drills, and specialized drill geometries.


10、Are there safety precautions to consider when using these drills?

Safety precautions include wearing appropriate personal protective equipment, using the correct coolant concentration, and following the manufacturer's guidelines for tool usage and maintenance.


11、Can these drills be used for deep-hole drilling?

Some internal cooling carbide drills are designed for deep-hole drilling applications, but the depth capabilities may vary depending on the specific drill design.


12、What is the expected tool life of internal cooling carbide drills?

Tool life depends on factors like material being drilled, cutting speeds, and coolant usage, but these drills typically have a longer tool life compared to standard drills due to the internal cooling mechanism.


13、Can these drills be used for both through-hole and blind-hole drilling?

Yes, they can be used for both types of drilling applications, depending on the drill's design and the specific requirements of the job.


14、Are there any environmental benefits to using internal cooling carbide drills?

Yes, the efficient coolant delivery system can reduce coolant wastage and minimize environmental impact compared to traditional flood coolant methods.


FAQs for the factory :


1、Are you a factory?

Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.


2、How to select models?

Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.


3、Do you offer OEM & ODM service?

Yes.We can supply OEM&ODM and make customized design for any specific application.


4、How can we know the product quality?

We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.


5、What's the delivery time?

Non-standard tools 5-10 Working days,Standard tools usually 1-2 days
