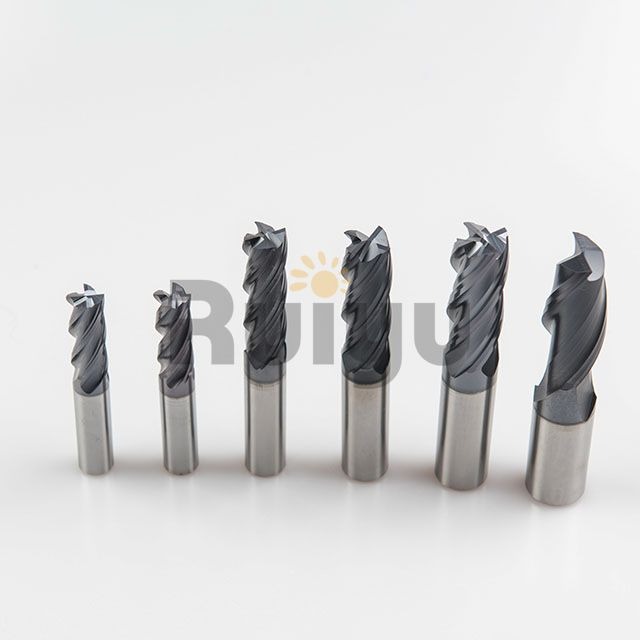

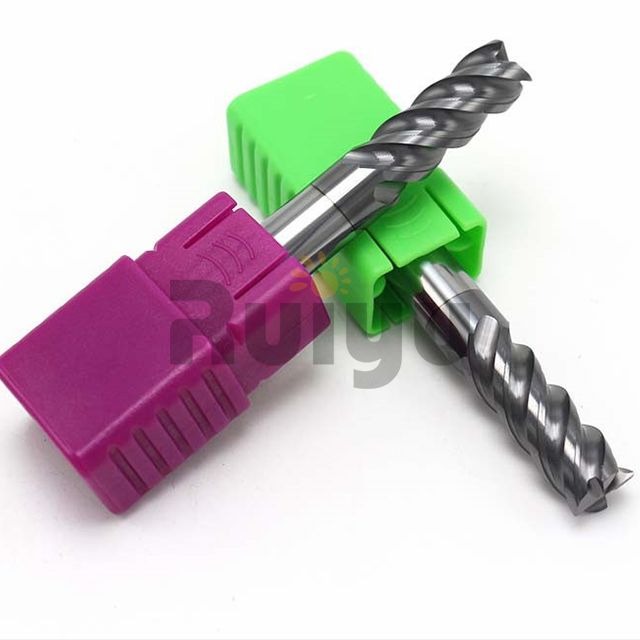

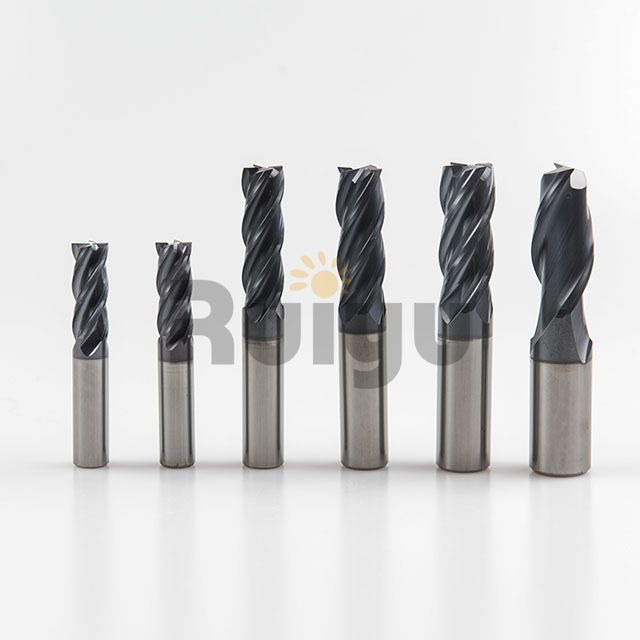

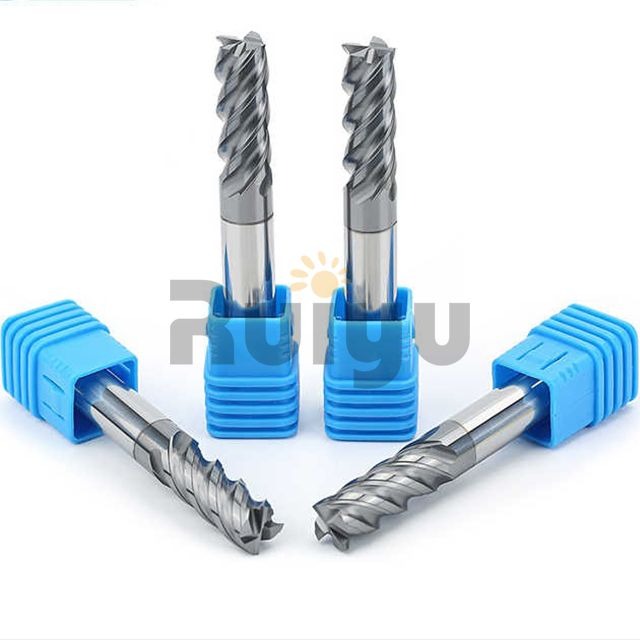

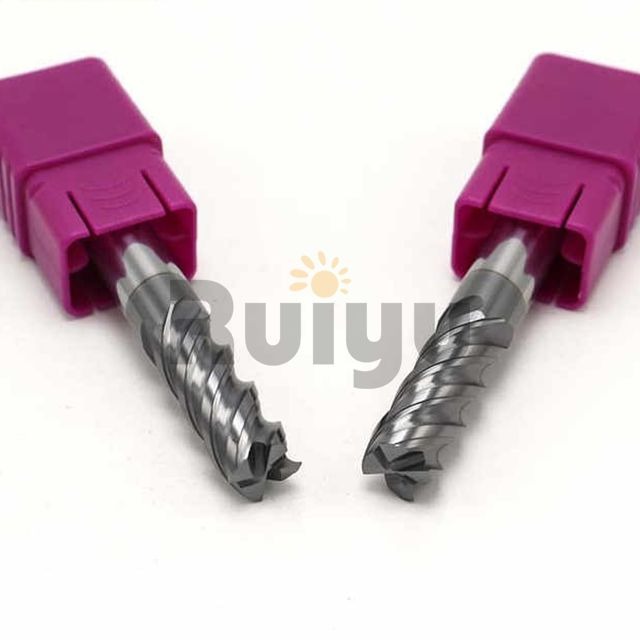

End Mill For Hardened Steel



Features Of End End Mill For Hardened Steel:


End mills used for machining hardened steel require specific features to withstand the material's high hardness and abrasiveness. Here are the key features of end mills designed for hardened steel:


1、Material:

End mills for hardened steel are typically made from solid carbide. Solid carbide end mills offer exceptional hardness and wear resistance, making them suitable for cutting through hardened steel materials.


2、Coating:

These end mills are often coated with specialized coatings like TiAlN (Titanium Aluminum Nitride) or TiSiN (Titanium Silicon Nitride). These coatings enhance hardness, reduce friction, and improve wear resistance, allowing the tool to withstand the abrasive nature of hardened steel.


3、Flute Design:

End mills for hardened steel usually have fewer flutes (typically 2 or 4 flutes). Fewer flutes provide larger chip spaces, allowing for efficient chip evacuation. This design minimizes the chances of chip clogging and reduces heat buildup during cutting.


4、Helix Angle:

End mills with a higher helix angle (around 40-45 degrees) are suitable for hardened steel. A higher helix angle aids in effective chip removal and reduces cutting forces, preventing tool wear and breakage.


5、Corner Radius:

End mills with a corner radius are preferred for machining hardened steel. The rounded corner reduces the stress concentration at the corners of the tool, enhancing tool life and minimizing the risk of chipping.


6、Rake Angle:

End mills for hardened steel often have a positive rake angle. A positive rake angle reduces cutting forces and heat generation, leading to longer tool life and improved surface finish on the workpiece.


7、Coolant Channels:

Some end mills feature internal coolant channels, allowing for efficient coolant flow directly to the cutting edges. Proper cooling is crucial when machining hardened steel to dissipate heat and extend tool life.


8、Edge Preparation:

End mills for hardened steel may have specially designed cutting edge geometries and edge preparations. These features help in reducing cutting forces and minimizing the tendency of the tool to work harden the material.


9、High Heat Resistance:

End mills for hardened steel should have excellent heat resistance properties to withstand the high temperatures generated during cutting. This ensures that the tool remains sharp and effective throughout the machining process.


10、Precision and Sharpness:

End mills should be manufactured with precision to ensure sharp cutting edges. Dull or rounded edges can lead to poor surface finish and increased cutting forces, especially when dealing with hard materials like hardened steel.



Advantages of End Mill For Hardened Steel:


1、Extended Tool Life:

End mills for hardened steel are made from solid carbide and often coated with advanced materials. This combination provides exceptional hardness and wear resistance, leading to significantly extended tool life compared to standard tools.


2、High Wear Resistance:

Specialized coatings like TiAlN (Titanium Aluminum Nitride) and TiSiN (Titanium Silicon Nitride) enhance the end mill's wear resistance. This is crucial when cutting through hardened steel, a material known for its abrasiveness.


3、Improved Surface Finish:

End mills designed for hardened steel produce smoother and finer surface finishes on the workpiece. This is essential in applications where high precision and excellent surface quality are required, such as in mold and die making.


4、Reduced Cutting Forces:

The precise geometry and coatings of end mills for hardened steel result in reduced cutting forces. Lower cutting forces minimize the risk of tool breakage and ensure stable and efficient machining even at high hardness levels.


5、Enhanced Heat Resistance:

Specialized end mills are designed to withstand the high temperatures generated during the cutting of hardened steel. This heat resistance ensures that the tool remains sharp and maintains its properties even under extreme thermal conditions.


6、Improved Chip Evacuation:

End mills for hardened steel often feature fewer flutes with larger chip spaces. This design facilitates efficient chip evacuation, preventing chip clogging and reducing the chances of tool damage due to chip buildup.


7、Precision Machining:

These end mills offer high precision and accuracy during machining operations. Their sharp cutting edges and stable performance enable precise profiling, contouring, and finishing of hardened steel components.


8、Versatility:

While specifically designed for hardened steel, these end mills can also be used for other hard materials such as high-temperature alloys, tool steels, and cast iron. Their versatility makes them valuable tools in various industrial applications.


9、Cost Efficiency:

Despite the initial higher cost, end mills for hardened steel offer superior durability and performance. Their extended tool life and high-quality machining capabilities result in cost savings over the long term, reducing the frequency of tool replacements.


10、Reduced Downtime:

Because of their durability and longevity, end mills designed for hardened steel require less frequent replacement. This reduces downtime for tool changes, leading to increased productivity and efficiency in machining processes.



Coatings of End Mill For Hardened Steel:


The purpose of applying a coating to a End Mill For Hardened Steel is to enhance its performance, durability, and overall effectiveness in various machining operations.


Titanium Nitride (TiN):

TiN is a popular coating choice for End Mill For Hardened Steel. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.


Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.


Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.


Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.


Applications of End Mill For Hardened Steel:


1、Mold and Die Making:

End mills for hardened steel are extensively used in mold and die making processes. They are employed to create intricate cavities, molds, and dies from hardened tool steels, ensuring precise and high-quality results.


2、Aerospace Industry:

Hardened steel components are prevalent in aerospace applications, especially in engine parts and structural components. End mills designed for hardened steel are used for machining these parts, ensuring the required precision and durability.


3、Automotive Industry:

Hardened steel is used in manufacturing engine components, gears, and transmission parts. End mills are employed for precision machining of these hardened steel components, ensuring tight tolerances and excellent surface finishes.


4、Medical Device Manufacturing:

End mills for hardened steel are crucial in the production of medical devices made from stainless steel and titanium alloys. These devices include surgical instruments, implants, and specialized components that require high precision and surface quality.


5、Tool and Die Manufacturing:

End mills designed for hardened steel are used to create cutting tools, dies, and punches from hardened tool steels. These tools are essential in various manufacturing processes, including stamping, forging, and extrusion.


6、Oil and Gas Industry:

Hardened steel components are used in valves, pumps, and drilling equipment in the oil and gas sector. End mills for hardened steel are employed to machine these components, ensuring durability and precision in harsh operating environments.


7、Precision Engineering:

Industries involved in precision engineering, such as aerospace, defense, and electronics, often require machining of hardened steel parts with intricate designs. End mills designed for hardened steel are used for these applications due to their ability to maintain precision and produce high-quality finishes.


8、Cutting and Forming Tools:

End mills for hardened steel are used to manufacture cutting and forming tools, such as drills, reamers, and taps. These tools are crucial in various industries for hole-making and shaping operations in hard materials.


9、Metalworking Machinery:

End mills are used in the production of metalworking machinery components made from hardened steel. These components include gears, shafts, and bearings, which require precise machining to ensure the machinery's functionality and longevity.


10、Custom Tool Manufacturing:

Manufacturers of custom tools and inserts rely on end mills designed for hardened steel to create specialized cutting tools tailored to specific applications. These custom tools are used across various industries for unique machining requirements.



Video Of End Mill For Hardened Steel


FAQs of End Mill For Hardened Steel


1、Can standard end mills be used for cutting hardened steel, or do I need specialized end mills?

Standard end mills are not recommended for cutting hardened steel due to the material's high hardness and abrasiveness. Specialized end mills designed for hardened steel should be used to ensure efficient machining, extended tool life, and high-quality results.


2、How do I choose the right end mill for machining hardened steel?

A2: When choosing an end mill for hardened steel, consider factors such as the material grade of the steel, required surface finish, and machining conditions. Select an end mill with features like solid carbide construction, specialized coatings (TiAlN, TiSiN), low flute count for efficient chip evacuation, and corner radius to reduce stress concentration.


3、What cutting speeds and feeds are suitable for machining hardened steel with specialized end mills?

Cutting speeds and feeds depend on the hardness of the steel, the specific end mill, and the machining conditions. Refer to the manufacturer's recommendations or cutting speed charts, considering variables like material hardness and tool coating, to determine appropriate cutting speeds and feeds for efficient machining of hardened steel.


4、How important is coolant or lubrication when machining hardened steel with end mills?

Coolant or lubrication is crucial when machining hardened steel. Proper coolant flow helps dissipate heat generated during cutting, reducing tool wear and preventing workpiece distortion. Coolant also aids in chip evacuation and improves the surface finish of the machined part.


5、Can end mills for hardened steel be used for other hard materials, such as titanium or high-temperature alloys?

A5: Yes, end mills designed for hardened steel can often be used for other hard materials like titanium and high-temperature alloys. However, it's essential to consider the specific properties of the material and match them with the appropriate tool features, such as coatings and geometries, for optimal performance.


6、Can end mills for hardened steel be resharpened?

Yes, end mills for hardened steel can be resharpened if the wear is within acceptable limits. However, resharpening should be done by experienced professionals using specialized tool grinding equipment to maintain original geometries and coatings, ensuring the tool's effectiveness during subsequent use.


7、What precautions should I take to ensure safety when using end mills for hardened steel?

When working with end mills for hardened steel, wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection. Follow proper machining procedures, secure workpieces effectively, and use coolant to prevent overheating. Regularly inspect tools for wear and replace them when necessary to maintain safe and efficient operations.
