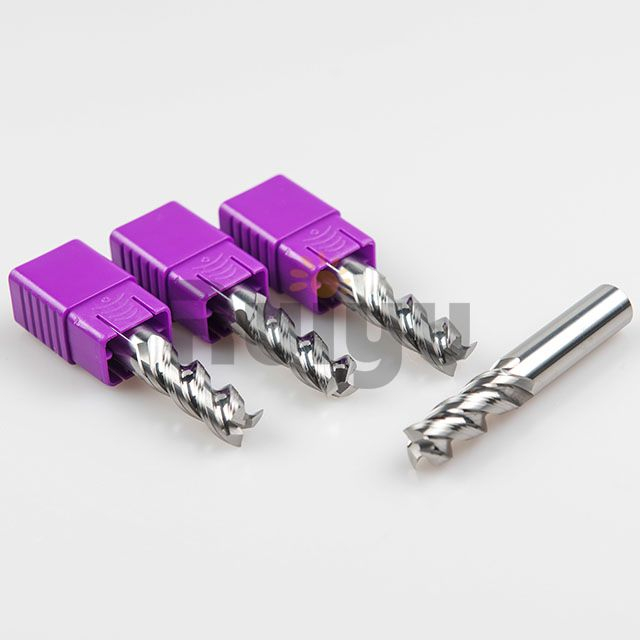

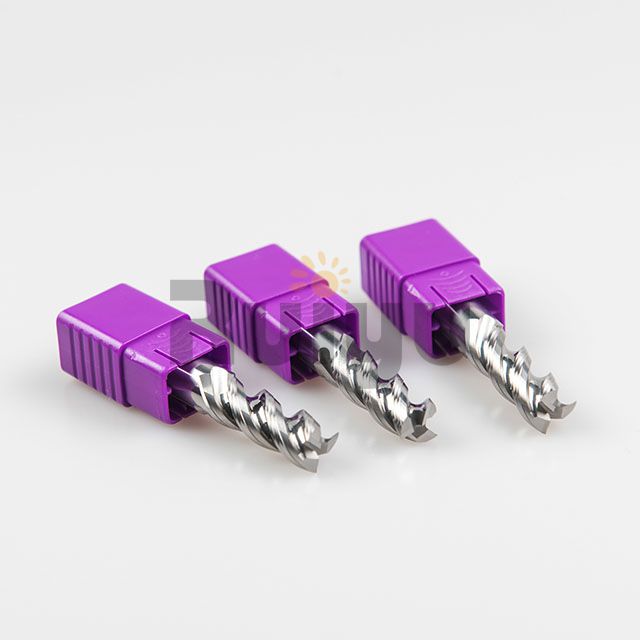

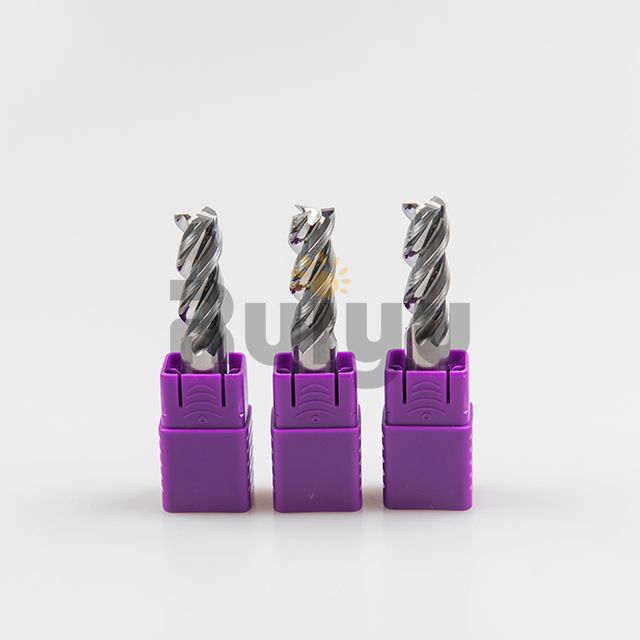

Solid Carbide 3 Flute Square End Mill
3 Flute
Spiral
High Speed Cutting
Aluminum, Copper, Cast Iron, Alloy Steel, Tool Steel,Stainless Steel, High-temp Alloys, Titanium Alloys, Non-ferrous Alloys
TiAlN, TiSiN, Nano
0.005-0.01
Stub, Standard, Extra-Long,38-330mm
| Quantity: | |
|---|---|
| Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| D1*3*D4*50 | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50 | 2 | 6 | 4 | 50 |
| D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
| D3*8*D4*50 | 3 | 8 | 4 | 50 |
| D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50 | 4 | 10 | 4 | 50 |
| D5*13*D6*50 | 5 | 13 | 6 | 50 |
| D6*15*D6*50 | 6 | 15 | 6 | 50 |
| D8*20*D8*60 | 8 | 20 | 8 | 60 |
| D10*25*D10*75 | 10 | 25 | 10 | 75 |
| D12*30*D12*75 | 12 | 30 | 12 | 75 |
| D14*45*D14*100 | 14 | 45 | 14 | 100 |
| D16*45*D16*100 | 16 | 45 | 16 | 100 |
| D18*45*D18*100 | 18 | 45 | 18 | 100 |
| D20*45*D20*100 | 20 | 45 | 20 | 100 |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D4*12*D4*75 | 4 | 12 | 4 | 75 |
D4*16*D4*100 | 4 | 16 | 4 | 100 |
D6*20*D6*75 | 6 | 20 | 6 | 75 |
D6*30*D6*100 | 6 | 30 | 6 | 100 |
D8*25*D8*75 | 8 | 25 | 8 | 75 |
D8*35*D8*100 | 8 | 35 | 8 | 100 |
D10*40*D10*100 | 10 | 40 | 10 | 100 |
D12*45*D12*100 | 12 | 45 | 12 | 100 |
D6*35*D6*150 | 6 | 35 | 6 | 150 |
D8*40*D8*150 | 8 | 40 | 8 | 150 |
D10*50*D10*150 | 10 | 50 | 10 | 150 |
D12*60*D12*150 | 12 | 60 | 12 | 150 |
D14*65*D14*150 | 14 | 65 | 14 | 150 |
D16*70*D16*150 | 16 | 70 | 16 | 150 |
D18*70*D18*150 | 18 | 70 | 18 | 150 |
D20*70*D20*150 | 20 | 70 | 20 | 150 |
The defining characteristic of 3-flute end mills is the presence of three helical cutting edges or flutes. These flutes extend along the length of the tool and are responsible for material removal during the milling process.
3-flute end mills provide a balance between material removal rates and surface finish. They are versatile tools suitable for both roughing and finishing operations, making them a common choice for various milling tasks.
While not as open as designs with fewer flutes, 3-flute end mills still provide effective chip evacuation. The multiple flutes create channels for chip removal, reducing the risk of chip recutting and improving overall machining efficiency.
3-flute end mills are versatile and can be used for a range of milling applications. They are well-suited for tasks that require a balance between high material removal rates and a good surface finish.
The three flutes contribute to the stability and rigidity of the tool. This enhanced stability is beneficial for achieving precision during machining, particularly in applications where tight tolerances are critical.
Compared to 2-flute end mills, 3-flute designs typically have a reduced chip load per tooth. This reduction can lead to improved surface finishes and reduced wear on the cutting edges, contributing to longer tool life.
3-flute end mills are often chosen for finishing operations due to their ability to provide a smoother surface finish compared to roughing operations.
The design of 3-flute end mills makes them suitable for machining a variety of materials, including both ferrous and non-ferrous metals, plastics, and composites.
With multiple flutes in contact with the material, 3-flute end mills can distribute heat more effectively. This characteristic helps reduce heat buildup during machining, contributing to longer tool life and improved machining performance.
Some 3-flute end mills are designed with corner radii, providing additional strength to the corners of the tool. This design feature can be advantageous in applications where corner strength is crucial.
3-flute end mills strike a balance between material removal rates and surface finish. They are versatile tools that can be used for both roughing and finishing operations, making them suitable for a wide range of milling tasks.
While not as open as designs with fewer flutes, 3-flute end mills still provide effective chip evacuation. The multiple flutes create channels for chip removal, reducing the risk of chip recutting and improving overall machining efficiency.
3-flute end mills are versatile and can be used for various milling applications. They are suitable for tasks that require a combination of high material removal rates and a good surface finish.
The three flutes contribute to the stability and rigidity of the tool. This enhanced stability is beneficial for achieving precision during machining, particularly in applications where tight tolerances are critical.
Compared to end mills with fewer flutes, 3-flute designs typically have a reduced chip load per tooth. This reduction can lead to improved surface finishes and reduced wear on the cutting edges, contributing to longer tool life.
3-flute end mills are often chosen for finishing operations due to their ability to provide a smoother surface finish compared to roughing operations.
The design of 3-flute end mills makes them suitable for machining a variety of materials, including both ferrous and non-ferrous metals, plastics, and composites.
With multiple flutes in contact with the material, 3-flute end mills can distribute heat more effectively. This characteristic helps reduce heat buildup during machining, contributing to longer tool life and improved machining performance.
Some 3-flute end mills are designed with corner radii, providing additional strength to the corners of the tool. This design feature can be advantageous in applications where corner strength is crucial.
The design of 3-flute end mills makes them well-suited for slotting and pocketing operations. The tool can efficiently engage with the material, creating precise slots or pockets.
The purpose of applying a coating to a carbide 3-flute end mill is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for carbide 3-flute end mill. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
A 3-flute end mill is a cutting tool with three cutting edges or flutes on its cylindrical body. This design offers distinct advantages and applications compared to other types of end mills. Here are some common applications for 3-flute end mills:
The presence of three flutes distributes the cutting load more evenly, allowing for higher cutting speeds without compromising tool life. This makes 3-flute end mills suitable for high-speed machining applications, where faster material removal rates are desired.
3-flute end mills are often used for finishing operations that require a smoother surface finish. The extra flute can help produce finer finishes and maintain better part accuracy, making these end mills suitable for intricate detail work.
When performing side milling operations to remove material from the side of a workpiece, a 3-flute end mill can provide excellent stability and chip evacuation. The added flute helps maintain rigidity while minimizing the risk of chip clogging.
Due to their smoother cutting action and improved chip evacuation, 3-flute end mills are well-suited for contouring and profiling applications. They can efficiently follow complex shapes and produce accurate results.
3-flute end mills can be used for slotting operations in various materials. The three flutes help create well-defined slots with good surface finishes.
While not as aggressive as some roughing end mills, 3-flute end mills can still handle roughing operations while producing a better surface finish compared to higher-flute-count options.
The increased rigidity provided by the extra flute can make 3-flute end mills suitable for machining harder materials, such as stainless steel, titanium, and hardened alloys.
The presence of three flutes can help dampen vibrations and reduce chatter during machining, leading to improved tool life and surface finish.
3-flute end mills can be used for drilling and plunging applications, especially in softer materials. They provide good center cutting action and chip evacuation for creating holes and pockets.
3-flute end mills offer a good balance between material removal rates and tool life. They are often chosen when moderate to high speeds and feeds are required, but with an emphasis on maintaining tool longevity.
A 3 flute end mill is a milling tool used to cut and shape various materials such as metal, wood, and plastic. It has three cutting edges and is commonly used for roughing and finishing operations.
The main benefits of using a 3 flute end mill are faster cutting speeds and improved chip evacuation due to the increased number of flutes. This can result in a smoother finish and longer tool life.
A 3 flute end mill can be used to cut a variety of materials including aluminum, brass, copper, steel, and plastic.
A 2 flute end mill has two cutting edges and is generally used for softer materials. A 3 flute end mill has three cutting edges and is generally used for harder materials and for faster cutting speeds.
When choosing a 3 flute end mill, consider the material you will be cutting, the depth of cut, the cutting speed, and the feed rate.
Ruiyu is a manufacturer of Carbide Cutting Tools: End Mills, Drills, Routers, Chamfer Mills and Specials.
We have precision detection machine, quality inspectors check cutters every piece to guarantee the quality of the products.
Yes, we have professional technician with rich experience and will deliver the samples for the approval before bulk production.
Yes, we have professional technician with rich experience and will deliver the samples for the approval before bulk production.We can produce according to your drawings; we can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging; if volume is big, we can pack at our side with your brand packaging.
