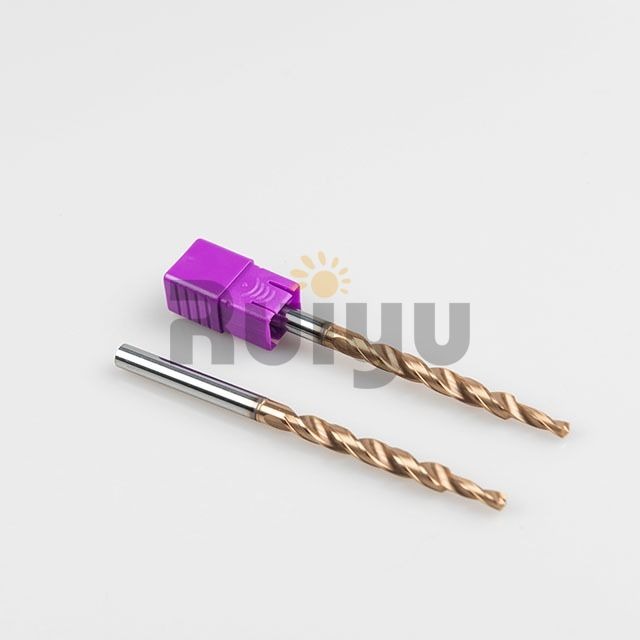

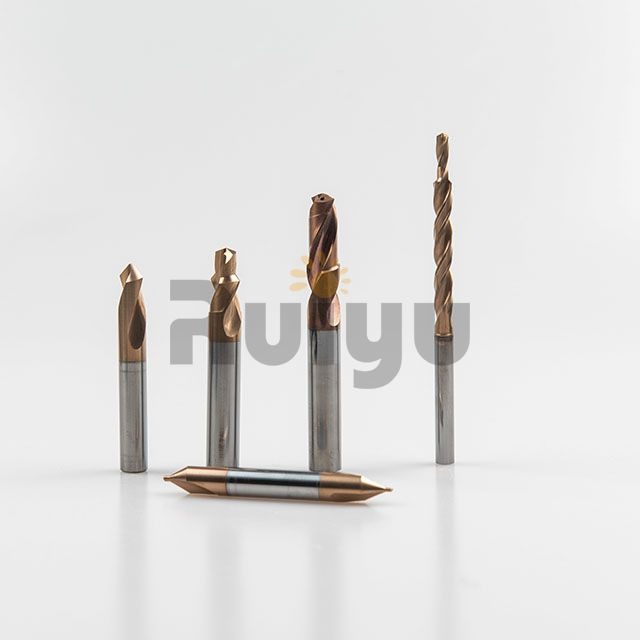

Carbide Drill Bits For Steel
Carbide Drill Bits For Steel
Carbide Drill Bits For Steel


Carbide Drill Bits For Steel


Specifications Of Carbide Drill Bits For Steel


1、Carbide Drill Bits For Steel Standard type


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D3.1*20*D6*62

3.1

20

6

62


D9.4*47*D10*89

9.4

47

10

89

D3.2*20*D6*62

3.2

20

6

62


D9.5*47*D10*89

9.5

47

10

89

D3.3*20*D6*62

3.3

20

6

62


D9.6*47*D10*89

9.6

47

10

89

D3.4*20*D6*62

3.4

20

6

62


D9.7*47*D10*89

9.7

47

10

89

D3.5*20*D6*62

3.5

20

6

62


D9.8*47*D10*89

9.8

47

10

89

D3.6*20*D6*62

3.6

20

6

62


D9.9*47*D10*89

9.9

47

10

89

D3.7*20*D6*62

3.7

20

6

62


D10*47*D10*89

10

47

10

89

D3.8*24*D6*66

3.8

24

6

66


D10.1*55*D12*102

10.1

55

12

102

D3.9*24*D6*66

3.9

24

6

66


D10.2*55*D12*102

10.2

55

12

102

D4*24*D6*66

4

24

6

66


D10.3*55*D12*102

10.3

55

12

102

D4.1*24*D6*66

4.1

24

6

66


D10.4*55*D12*102

10.4

55

12

102

D4.2*24*D6*66

4.2

24

6

66


D10.5*55*D12*102

10.5

55

12

102

D4.3*24*D6*66

4.3

24

6

66


D10.6*55*D12*102

10.6

55

12

102

D4.4*24*D6*66

4.4

24

6

66


D10.7*55*D12*102

10.7

55

12

102

D4.5*24*D6*66

4.5

24

6

66


D10.8*55*D12*102

10.8

55

12

102

D4.6*24*D6*66

4.6

24

6

66


D10.9*55*D12*102

10.9

55

12

102

D4.7*24*D6*66

4.7

24

6

66


D11*55*D12*102

11

55

12

102

D4.8*28*D6*66

4.8

28

6

66


D11.1*55*D12*102

11.1

55

12

102

D4.9*28*D6*66

4.9

28

6

66


D11.2*55*D12*102

11.2

55

12

102

D5*28*D6*66

5

28

6

66


D11.3*55*D12*102

11.3

55

12

102

D5.1*28*D6*66

5.1

28

6

66


D11.4*55*D12*102

11.4

55

12

102

D5.2*28*D6*66

5.2

28

6

66


D11.5*55*D12*102

11.5

55

12

102

D5.3*28*D6*66

5.3

28

6

66


D11.6*55*D12*102

11.6

55

12

102

D5.4*28*D6*66

5.4

28

6

66


D11.7*55*D12*102

11.7

55

12

102

D5.5*28*D6*66

5.5

28

6

66


D11.8*55*D12*102

11.8

55

12

102

D5.6*28*D6*66

5.6

28

6

66


D11.9*55*D12*102

11.9

55

12

102

D5.7*28*D6*66

5.7

28

6

66


D12*55*D12*102

12

55

12

102

D5.8*28*D6*66

5.8

28

6

66


D12.1*60*D14*107

12.1

60

14

107

D5.9*28*D6*66

5.9

28

6

66


D12.2*60*D14*107

12.2

60

14

107

D6*28*D6*66

6

28

6

66


D12.3*60*D14*107

12.3

60

14

107

D6.1*34*D8*79

6.1

34

8

79


D12.4*60*D14*107

12.4

60

14

107

D6.2*34*D8*79

6.2

34

8

79


D12.5*60*D14*107

12.5

60

14

107

D6.3*34*D8*79

6.3

34

8

79


D12.6*60*D14*107

12.6

60

14

107

D6.4*34*D8*79

6.4

34

8

79


D12.7*60*D14*107

12.7

60

14

107

D6.5*34*D8*79

6.5

34

8

79


D12.8*60*D14*107

12.8

60

14

107

D6.6*34*D8*79

6.6

34

8

79


D12.9*60*D14*107

12.9

60

14

107

D6.7*34*D8*79

6.7

34

8

79


D13*60*D14*107

13

60

14

107

D6.8*34*D8*79

6.8

34

8

79


D13.2*60*D14*107

13.2

60

14

107

D6.9*34*D8*79

6.9

34

8

79


D13.3*60*D14*107

13.3

60

14

107

D7*34*D8*79

7

34

8

79


D13.5*60*D14*107

13.5

60

14

107

D7.1*41*D8*79

7.1

41

8

79


D13.7*60*D14*107

13.7

60

14

107

D7.2*41*D8*79

7.2

41

8

79


D13.8*60*D14*107

13.8

60

14

107

D7.3*41*D8*79

7.3

41

8

79


D14*60*D14*107

14

60

14

107

D7.4*41*D8*79

7.4

41

8

79


D14.2*65*D16*115

14.2

65

16

115

D7.5*41*D8*79

7.5

41

8

79


D14.3*65*D16*115

14.3

65

16

115

D7.6*41*D8*79

7.6

41

8

79


D14.4*65*D16*115

14.4

65

16

115

D7.7*41*D8*79

7.7

41

8

79


D14.5*65*D16*115

14.5

65

16

115

D7.8*41*D8*79

7.8

41

8

79


D14.7*65*D16*115

14.7

65

16

115

D7.9*41*D8*79

7.9

41

8

79


D15*65*D16*115

15

65

16

115

D8*41*D8*79

8

41

8

79


D15.2*65*D16*115

15.2

65

16

115

D8.1*47*D10*89

8.1

47

10

89


D15.5*65*D16*115

15.5

65

16

115

D8.2*47*D10*89

8.2

47

10

89


D15.6*65*D16*115

15.6

65

16

115

D8.3*47*D10*89

8.3

47

10

89


D15.7*65*D16*115

15.7

65

16

115

D8.4*47*D10*89

8.4

47

10

89


D15.8*65*D16*115

15.8

65

16

115

D8.5*47*D10*89

8.5

47

10

89


D16*65*D16*115

16

65

16

115

D8.6*47*D10*89

8.6

47

10

89


D16.5*73*D18*123

16.5

73

18

123

D8.7*47*D10*89

8.7

47

10

89


D17*73*D18*123

17

73

18

123

D8.8*47*D10*89

8.8

47

10

89


D17.5*73*D18*123

17.5

73

18

123

D8.9*47*D10*89

8.9

47

10

89


D18*73*D18*123

18

73

18

123

D9*47*D10*89

9

47

10

89


D18.5*79*D20*131

18.5

79

20

131

D9.1*47*D10*89

9.1

47

10

89


D19*79*D20*131

19

79

20

131

D9.2*47*D10*89

9.2

47

10

89


D19.5*79*D20*131

19.5

79

20

131

D9.3*47*D10*89

9.3

47

10

89


D20*79*D20*131

20

79

20

131


2、Carbide Drill Bits For Steel Standard type


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D3.1*28*D6*66

3.1

28

6

66


D9.4*61*D10*103

9.4

61

10

103

D3.2*28*D6*66

3.2

28

6

66


D9.5*61*D10*103

9.5

61

10

103

D3.3*28*D6*66

3.3

28

6

66


D9.6*61*D10*103

9.6

61

10

103

D3.4*28*D6*66

3.4

28

6

66


D9.7*61*D10*103

9.7

61

10

103

D3.5*28*D6*66

3.5

28

6

66


D9.8*61*D10*103

9.8

61

10

103

D3.6*28*D6*66

3.6

28

6

66


D9.9*61*D10*103

9.9

61

10

103

D3.7*28*D6*66

3.7

28

6

66


D10*61*D10*103

10

61

10

103

D3.8*36*D6*74

3.8

36

6

74


D10.1*71*D12*118

10.1

71

12

118

D3.9*36*D6*74

3.9

36

6

74


D10.2*71*D12*118

10.2

71

12

118

D4*36*D6*74

4

36

6

74


D10.3*71*D12*118

10.3

71

12

118

D4.1*36*D6*74

4.1

36

6

74


D10.4*71*D12*118

10.4

71

12

118

D4.2*36*D6*74

4.2

36

6

74


D10.5*71*D12*118

10.5

71

12

118

D4.3*36*D6*74

4.3

36

6

74


D10.6*71*D12*118

10.6

71

12

118

D4.4*36*D6*74

4.4

36

6

74


D10.7*71*D12*118

10.7

71

12

118

D4.5*36*D6*74

4.5

36

6

74


D10.8*71*D12*118

10.8

71

12

118

D4.6*36*D6*74

4.6

36

6

74


D10.9*71*D12*118

10.9

71

12

118

D4.7*36*D6*82

4.7

36

6

82


D11*71*D12*118

11

71

12

118

D4.8*44*D6*82

4.8

44

6

82


D11.1*71*D12*118

11.1

71

12

118

D4.9*44*D6*82

4.9

44

6

82


D11.2*71*D12*118

11.2

71

12

118

D5*44*D6*82

5

44

6

82


D11.3*71*D12*118

11.3

71

12

118

D5.1*44*D6*82

5.1

44

6

82


D11.4*71*D12*118

11.4

71

12

118

D5.2*44*D6*82

5.2

44

6

82


D11.5*71*D12*118

11.5

71

12

118

D5.3*44*D6*82

5.3

44

6

82


D11.6*71*D12*118

11.6

71

12

118

D5.4*44*D6*82

5.4

44

6

82


D11.7*71*D12*118

11.7

71

12

118

D5.5*44*D6*82

5.5

44

6

82


D11.8*71*D12*118

11.8

71

12

118

D5.6*44*D6*82

5.6

44

6

82


D11.9*71*D12*118

11.9

71

12

118

D5.7*44*D6*82

5.7

44

6

82


D12*71*D12*118

12

71

12

118

D5.8*44*D6*82

5.8

44

6

82


D12.1*77*D14*124

12.1

77

14

124

D5.9*44*D6*82

5.9

44

6

82


D12.2*77*D14*124

12.2

77

14

124

D6*44*D6*82

6

44

6

82


D12.3*77*D14*124

12.3

77

14

124

D6.1*53*D8*91

6.1

53

8

91


D12.4*77*D14*124

12.4

77

14

124

D6.2*53*D8*91

6.2

53

8

91


D12.5*77*D14*124

12.5

77

14

124

D6.3*53*D8*91

6.3

53

8

91


D12.6*77*D14*124

12.6

77

14

124

D6.4*53*D8*91

6.4

53

8

91


D12.7*77*D14*124

12.7

77

14

124

D6.5*53*D8*91

6.5

53

8

91


D12.8*77*D14*124

12.8

77

14

124

D6.6*53*D8*91

6.6

53

8

91


D12.9*77*D14*124

12.9

77

14

124

D6.7*53*D8*91

6.7

53

8

91


D13*77*D14*124

13

77

14

124

D6.8*53*D8*91

6.8

53

8

91


D13.2*77*D14*124

13.2

77

14

124

D6.9*53*D8*91

6.9

53

8

91


D13.3*77*D14*124

13.3

77

14

124

D7*53*D8*91

7

53

8

91


D13.5*77*D14*124

13.5

77

14

124

D7.1*53*D8*91

7.1

53

8

91


D13.7*77*D14*124

13.7

77

14

124

D7.2*53*D8*91

7.2

53

8

91


D13.8*77*D14*124

13.8

77

14

124

D7.3*53*D8*91

7.3

53

8

91


D14*77*D14*124

14

77

14

124

D7.4*53*D8*91

7.4

53

8

91


D14.2*83*D16*133

14.2

83

16

133

D7.5*53*D8*91

7.5

53

8

91


D14.3*83*D16*133

14.3

83

16

133

D7.6*53*D8*91

7.6

53

8

91


D14.4*83*D16*133

14.4

83

16

133

D7.7*53*D8*91

7.7

53

8

91


D14.5*83*D16*133

14.5

83

16

133

D7.8*53*D8*91

7.8

53

8

91


D14.7*83*D16*133

14.7

83

16

133

D7.9*53*D8*91

7.9

53

8

91


D15*83*D16*133

15

83

16

133

D8*53*D8*91

8

53

8

91


D15.2*83*D16*133

15.2

83

16

133

D8.1*61*D10*103

8.1

61

10

103


D15.5*83*D16*133

15.5

83

16

133

D8.2*61*D10*103

8.2

61

10

103


D15.6*83*D16*133

15.6

83

16

133

D8.3*61*D10*103

8.3

61

10

103


D15.7*83*D16*133

15.7

83

16

133

D8.4*61*D10*103

8.4

61

10

103


D15.8*83*D16*133

15.8

83

16

133

D8.5*61*D10*103

8.5

61

10

103


D16*83*D16*133

16

83

16

133

D8.6*61*D10*103

8.6

61

10

103


D16.5*93*D18*143

16.5

93

18

143

D8.7*61*D10*103

8.7

61

10

103


D17*93*D18*143

17

93

18

143

D8.8*61*D10*103

8.8

61

10

103


D17.5*93*D18*143

17.5

93

18

143

D8.9*61*D10*103

8.9

61

10

103


D18*93*D18*143

18

93

18

143

D9*61*D10*103

9

61

10

103


D18.5*101*D20*153

18.5

101

20

153

D9.1*61*D10*103

9.1

61

10

103


D19*101*D20*153

19

101

20

153

D9.2*61*D10*103

9.2

61

10

103


D19.5*101*D20*153

19.5

101

20

153

D9.3*61*D10*103

9.3

61

10

103


D20*101*D20*153

20

101

20

153


Features Of Carbide Drill Bits For Steel


1、Hardness:

Carbide drill bits are incredibly hard and can withstand high temperatures. This hardness allows them to maintain their sharpness and cutting edge even when drilling through tough steel surfaces.


2、Heat Resistance:

Carbide bits have excellent heat resistance properties. They can handle the heat generated during high-speed drilling without losing their hardness or becoming brittle.


3、Durability:

Carbide drill bits are long-lasting and resist wear and tear better than traditional steel bits. This durability means they have a longer lifespan, saving you money in the long run.


4、Precision:

Carbide bits offer high precision and accuracy when drilling into steel. They can create clean, precise holes without causing the material to warp or deform.


5、Versatility:

Carbide drill bits are versatile and can be used for drilling various types of steel, including stainless steel and hardened steel. They can also be used for other hard materials like cast iron and titanium.


6、Corrosion Resistance:

Carbide drill bits are resistant to corrosion, ensuring that they remain in good condition even when exposed to moisture or chemicals commonly found in industrial environments.


7、Reduced Friction:

Carbide bits have a smooth surface that reduces friction during drilling. This reduced friction helps in efficient drilling and prevents overheating.


8、Shank Types:

Carbide drill bits for steel come in different shank types, including straight shank and hex shank. The shank type determines how the bit is secured in the drill, providing options for different drilling machines.


9、Flute Design:

Carbide drill bits often feature specially designed flutes that help in removing chips and debris from the hole efficiently. Proper chip evacuation is essential for maintaining drilling speed and accuracy.


10、Special Coatings:

Some carbide drill bits come with special coatings such as TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) to further enhance their wear resistance and extend their lifespan.


11、Various Sizes and Shapes:

Carbide drill bits are available in a wide range of sizes and shapes, allowing users to choose the appropriate bit for specific hole sizes and applications.


Advantages Of Carbide Drill Bits For Steel:


1、Exceptional Hardness:

Carbide drill bits are extremely hard, making them ideal for drilling into tough materials like steel. Their hardness allows them to maintain sharp cutting edges even under high-stress conditions.


2、High Heat Resistance:

Carbide drill bits can withstand high temperatures generated during high-speed drilling. This heat resistance prevents them from losing their hardness or becoming brittle, ensuring consistent performance.


3、Extended Durability:

Carbide bits are highly durable and resistant to wear and tear. They outlast traditional steel bits, providing longer tool life and reducing the frequency of replacements, saving both time and money.


4、Precision and Accuracy:

Carbide drill bits offer high precision and accuracy. They create clean, precise holes without causing the material to warp or deform. This accuracy is crucial, especially in applications where precise hole dimensions are required.


5、Versatility:

Carbide drill bits are versatile and can be used for drilling various types of steel, including stainless steel and hardened steel. They are also suitable for drilling other hard materials like cast iron and titanium, making them a versatile choice for different applications.


6、Reduced Friction:

Carbide bits have a smooth surface that reduces friction during drilling. Reduced friction leads to efficient drilling, prevents overheating, and contributes to a longer tool life.


7、Corrosion Resistance:

Carbide drill bits are resistant to corrosion, ensuring they remain in good condition even when exposed to moisture or chemicals. This resistance enhances their longevity and reliability, especially in industrial environments.


8、Improved Chip Evacuation:

Many carbide drill bits feature specially designed flutes that aid in efficient chip evacuation. Proper chip removal prevents clogging and maintains drilling speed, resulting in faster and more efficient operations.


9、Customization:

Carbide drill bits can be customized for specific applications. Manufacturers can design bits with unique geometries, coatings, and flute styles tailored to specific steel drilling tasks, optimizing performance and productivity.


10、Compatibility with High-Speed Drilling:

Carbide bits are compatible with high-speed drilling machines. Their ability to withstand the high rotational speeds necessary for efficient drilling makes them invaluable in industrial settings where productivity is crucial.


11、Cost Efficiency:

Although carbide drill bits may have a higher initial cost than traditional steel bits, their extended lifespan and superior performance make them cost-effective in the long run. Reduced replacement frequency and increased productivity contribute to overall cost efficiency.


Coatings Of Carbide Drill Bits For Steel:


The purpose of applying a coating to a Carbide Drill Bits For Steel is to enhance its performance, durability, and overall effectiveness in various machining operations.


Titanium Nitride (TiN):

TiN is a popular coating choice for Carbide Drill Bits For Steel. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.


Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.


Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.


Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.


Applications Of Carbide Drill Bits For Steel


1、Metal Fabrication:

Carbide drill bits are widely used in metal fabrication shops to drill holes in steel plates, sheets, and structural components. They are essential for tasks such as creating holes for bolts, screws, and rivets.


2、Automotive Industry:

Carbide drill bits are utilized in the automotive industry for drilling holes in steel components like engine parts, chassis, and body panels. They are crucial for assembly and repair processes.


3、Aerospace Industry:

In aerospace engineering, carbide drill bits are used to drill holes in steel and other alloys for aircraft components. These bits are capable of drilling precise holes in high-strength materials used in aerospace applications.


4、Oil and Gas Industry:

Carbide drill bits are employed in the oil and gas industry for drilling steel pipes and casings during oil exploration and extraction processes. They are also used for drilling holes in steel equipment and structures in refineries.


5、Construction:

Construction professionals use carbide drill bits to drill holes in steel beams, columns, and other structural elements. These bits are essential for creating openings for bolts, anchors, and other fasteners in steel structures.


6、Mining Industry:

Carbide drill bits are utilized in mining operations for drilling into hard rock formations, including steel-rich ores. They are essential for exploratory drilling, tunneling, and extracting mineral resources.


7、Manufacturing:

Carbide drill bits are used in various manufacturing processes, such as producing steel components for machinery and equipment. They help create precisely sized and positioned holes in steel parts, ensuring proper assembly and functionality.


8、Railroad Industry:

Carbide drill bits are employed in the railroad industry for drilling holes in steel rails, ties, and other components. These holes are used for fastening rail sections and other structural elements.


9、General Metalworking:

Carbide drill bits are valuable tools in any metalworking shop. They are used for drilling holes in steel pipes, tubes, rods, and other metal components used in diverse industries.


10、DIY and Home Improvement:

Carbide drill bits are also available for consumer use. DIY enthusiasts and professionals alike use these bits for drilling into steel surfaces during home improvement projects, furniture assembly, and repairs.


Video Of Carbide Drill Bits For Steel


FAQs Of Carbide Drill Bits For Steel


1、What is a carbide drill bit?

A carbide drill bit is a cutting tool made from carbide, a compound of carbon and tungsten. Carbide bits are known for their hardness and durability, making them suitable for drilling into tough materials like steel.


2、How are carbide drill bits different from regular steel drill bits?

Carbide drill bits are much harder than regular steel bits. They maintain sharpness and cutting edges even when drilling through hard materials like steel. This hardness and durability give them a significant advantage over standard steel bits.


3、Can carbide drill bits be used for drilling other materials besides steel?

Yes, carbide drill bits are versatile and can be used for drilling various materials, including stainless steel, cast iron, aluminum, and other alloys. They are especially effective for drilling hard and abrasive materials.


4、What sizes are carbide drill bits available in?

Carbide drill bits come in a wide range of sizes, from small diameters for precision drilling to larger diameters for more significant holes. They are available in various lengths and diameters to accommodate different drilling needs.


5、Do carbide drill bits require special maintenance?

Carbide drill bits do not require extensive maintenance. However, it's essential to keep them clean and properly stored to prevent damage. Using the right drilling speed, coolant, and feed rate as recommended by the manufacturer can enhance their performance and longevity.


6、Can carbide drill bits be resharpened?

Carbide drill bits can be resharpened, but it requires specialized equipment and expertise. It's often more cost-effective to replace them, especially considering their long lifespan. Resharpening is typically done for specialized or custom bits.


7、Are carbide drill bits suitable for high-speed drilling applications?

Yes, carbide drill bits are excellent for high-speed drilling. Their hardness and heat resistance make them well-suited for applications where high speeds are necessary for efficient and productive drilling, such as in industrial settings.


8、Are there different types of carbide drill bits for specific steel applications?

Yes, there are specialized carbide drill bits designed for specific steel applications. For instance, there are carbide bits optimized for drilling hardened steel, stainless steel, or structural steel. These specialized bits are engineered with specific geometries and coatings for enhanced performance in particular steel types.


9、Can carbide drill bits be used with hand drills?

Yes, carbide drill bits are compatible with hand drills. However, it's essential to use the correct drilling technique, including the appropriate drilling speed and pressure, to ensure precise and efficient drilling results.


FAQs for the factory :


1、Are you a factory?

Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.


2、How to select models?

Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.


3、Do you offer OEM & ODM service?

Yes.We can supply OEM&ODM and make customized design for any specific application.


4、How can we know the product quality?

We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.


5、What's the delivery time?

Non-standard tools 5-10 Working days,Standard tools usually 1-2 days.

Consult Your Ruiyu Carbide


Consult Your Ruiyu Carbide Tools Experts

We help you avoid the pitfalls to deliver the quality and value your Carbide Tools needs, on-time and on-budget.

Our team is here to serve you.

Products

Quick Links

Contact Us

   rita@ruiyutool.com
  +86-13357881369
   No,6 Weishanhu Road, Xixiashu Town, Xinbei District, Changzhou City
© COPYRIGHT 2022 CHANGZHOU RUIYU TOOL CO.,LTD ALL RIGHTS RESERVED.
