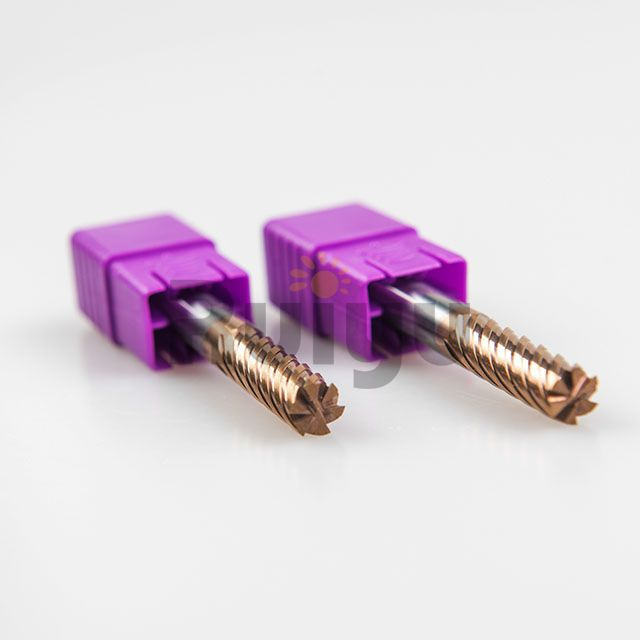

Solid Carbide 6 Flute Square End Mill
6 Flute
Spiral
High Speed Cutting
Alloy Steel, Tool Steel,Stainless Steel, High-temp Alloys, Titanium Alloys, Non-ferrous Alloys
TiAlN, TiSiN, Nano
0.005-0.01
Stub, Standard, Extra-Long,38-330mm
| Quantity: | |
|---|---|
| Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| D1*3*D4*50 | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50 | 2 | 6 | 4 | 50 |
| D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
| D3*8*D4*50 | 3 | 8 | 4 | 50 |
| D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50 | 4 | 10 | 4 | 50 |
| D5*13*D6*50 | 5 | 13 | 6 | 50 |
| D6*15*D6*50 | 6 | 15 | 6 | 50 |
| D8*20*D8*60 | 8 | 20 | 8 | 60 |
| D10*25*D10*75 | 10 | 25 | 10 | 75 |
| D12*30*D12*75 | 12 | 30 | 12 | 75 |
| D14*45*D14*100 | 14 | 45 | 14 | 100 |
| D16*45*D16*100 | 16 | 45 | 16 | 100 |
| D18*45*D18*100 | 18 | 45 | 18 | 100 |
| D20*45*D20*100 | 20 | 45 | 20 | 100 |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D4*12*D4*75 | 4 | 12 | 4 | 75 |
D4*16*D4*100 | 4 | 16 | 4 | 100 |
D6*20*D6*75 | 6 | 20 | 6 | 75 |
D6*30*D6*100 | 6 | 30 | 6 | 100 |
D8*25*D8*75 | 8 | 25 | 8 | 75 |
D8*35*D8*100 | 8 | 35 | 8 | 100 |
D10*40*D10*100 | 10 | 40 | 10 | 100 |
D12*45*D12*100 | 12 | 45 | 12 | 100 |
D6*35*D6*150 | 6 | 35 | 6 | 150 |
D8*40*D8*150 | 8 | 40 | 8 | 150 |
D10*50*D10*150 | 10 | 50 | 10 | 150 |
D12*60*D12*150 | 12 | 60 | 12 | 150 |
D14*65*D14*150 | 14 | 65 | 14 | 150 |
D16*70*D16*150 | 16 | 70 | 16 | 150 |
D18*70*D18*150 | 18 | 70 | 18 | 150 |
D20*70*D20*150 | 20 | 70 | 20 | 150 |
The presence of six flutes allows for more cutting edges, leading to a higher material removal rate compared to end mills with fewer flutes. This feature is advantageous when machining materials that require aggressive cutting.
More flutes can contribute to a smoother surface finish on the machined part. The multiple cutting edges help distribute the cutting forces, reducing the likelihood of chatter and vibration that can negatively impact surface quality.
The additional flutes can enhance the rigidity of the end mill. This increased stiffness is beneficial when milling harder materials or when using longer tool lengths, as it helps to minimize deflection and maintain dimensional accuracy.
6-flute end mills are often designed for high-speed machining applications. The multiple flutes help in efficient chip evacuation, preventing chip buildup and allowing for higher cutting speeds without compromising performance.
The increased number of flutes aids in efficient chip evacuation, reducing the risk of chip recutting. Proper chip removal is crucial for preventing tool wear and maintaining the machining accuracy.
6-flute end mills are versatile and can be used for a range of milling operations, including slotting, profiling, and contouring. Their design makes them suitable for a variety of materials, from soft metals to harder alloys.
The increased number of flutes provides more cutting edges, allowing for a higher material removal rate. This is particularly beneficial in applications where efficient stock removal is essential, leading to faster machining times.
More flutes contribute to a smoother surface finish on the machined part. The additional cutting edges help distribute cutting forces evenly, reducing the likelihood of surface irregularities and improving overall part quality.
The multiple flutes add to the rigidity of the end mill, which is especially advantageous when machining harder materials or when using longer cutting tools. Improved rigidity helps minimize deflection, ensuring dimensional accuracy in the finished part.
The presence of six flutes facilitates efficient chip evacuation. Proper chip removal is crucial to prevent chip recutting, which can lead to tool wear. The design helps maintain a clear cutting path, allowing for smooth chip evacuation and reducing the risk of chip-related issues.
6-flute end mills are often designed for high-speed machining applications. The additional flutes aid in effective material removal at higher cutting speeds, making them suitable for operations where increased productivity and efficiency are desired.
The versatility of 6-flute end mills allows them to be used across a range of materials, including both softer metals and harder alloys. This adaptability makes them a practical choice for various machining applications.
The multiple cutting edges distribute cutting forces more evenly, reducing the likelihood of chatter and vibration during machining. This leads to a more stable cutting process, improving tool life and maintaining machining accuracy.
The combination of efficient chip evacuation, reduced chatter, and enhanced rigidity contributes to a longer tool life. This is especially important for minimizing tool replacement frequency and increasing overall cost-effectiveness.
The purpose of applying a coating to a carbide 6-flute end mill is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for carbide 6-flute end mill. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
A 6 Flute End Mill is a cutting tool used in milling applications. It is a type of end mill that has six cutting edges and is designed to remove material from a workpiece. Here are six common applications for a 6 Flute End Mill:
6 Flute End Mills are ideal for high-speed machining applications. They can remove material quickly and efficiently, making them perfect for cutting complex shapes and contours.
6 Flute End Mills are commonly used for machining aluminum. They can produce a smoother finish than other types of end mills and are less likely to cause damage to the workpiece.
6 Flute End Mills are also useful for cutting hard materials like titanium and stainless steel. The multiple cutting edges help distribute the cutting forces, reducing the risk of tool breakage.
6 Flute End Mills are great for finishing operations. They can produce a smooth surface finish and are less likely to leave marks or chatter marks on the workpiece.
6 Flute End Mills can be used for slotting applications. The multiple cutting edges can help produce a precise slot with a smooth surface finish.
6 Flute End Mills can also be used for roughing operations. They can remove material quickly and efficiently, making them ideal for roughing out a workpiece before finishing it with a finer end mill.
Overall, 6 Flute End Mills are versatile cutting tools that can be used in a variety of applications. Their multiple cutting edges make them ideal for high-speed machining, aluminum machining, cutting hard materials, finishing, slotting, and roughing.
A 6 flute end mill is a cutting tool used in milling applications. It has six cutting edges and is used to make precise cuts in a variety of materials, including metal, plastic, and wood.
The main advantage of a 6 flute end mill is that it can remove material more quickly and efficiently than end mills with fewer flutes. This is because the additional flutes allow for a higher feed rate without sacrificing surface finish.
A 6 flute end mill can be used on a variety of materials, including aluminum, steel, stainless steel, and titanium. It is important to select the appropriate coating and cutting speed for the specific material being machined.
A 6 flute end mill has two additional cutting edges compared to a 4 flute end mill. This allows the 6 flute end mill to remove material more quickly and efficiently. However, a 4 flute end mill may provide a better surface finish.
The recommended cutting speed for a 6 flute end mill varies based on the material being machined. It is important to consult the manufacturer's recommendations or cutting speed charts to determine the appropriate speed for the specific application.
To maintain a 6 flute end mill, it is important to keep it clean and free of debris. After use, the end mill should be wiped clean and stored in a dry location. It is also important to inspect the end mill regularly for wear and damage and replace it as necessary.
Ruiyu is a manufacturer of Carbide Cutting Tools: End Mills, Drills, Routers, Chamfer Mills and Specials.
We have precision detection machine, quality inspectors check cutters every piece to guarantee the quality of the products.
Yes, we have professional technician with rich experience and will deliver the samples for the approval before bulk production.
Yes, we have professional technician with rich experience and will deliver the samples for the approval before bulk production.We can produce according to your drawings; we can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging; if volume is big, we can pack at our side with your brand packaging.
