End mills for steel are typically made from high-speed steel (HSS) or carbide. Carbide end mills are more durable and can withstand higher temperatures, making them suitable for high-speed machining applications.
End mills can have various coatings like TiN (Titanium Nitride), TiCN (Titanium Carbonitride), TiAlN (Titanium Aluminum Nitride), or AlTiN (Aluminum Titanium Nitride). These coatings improve tool life, reduce friction, and enhance wear resistance, making them crucial for machining hard steel materials.
End mills can have different flute designs, such as two, three, or four flutes. More flutes generally provide better surface finish and increased rigidity, making them suitable for finishing operations on steel.
The helix angle of the end mill affects the cutting efficiency and chip evacuation. Higher helix angles (around 45 degrees) are suitable for high-speed machining and efficient chip removal, especially in softer steels.

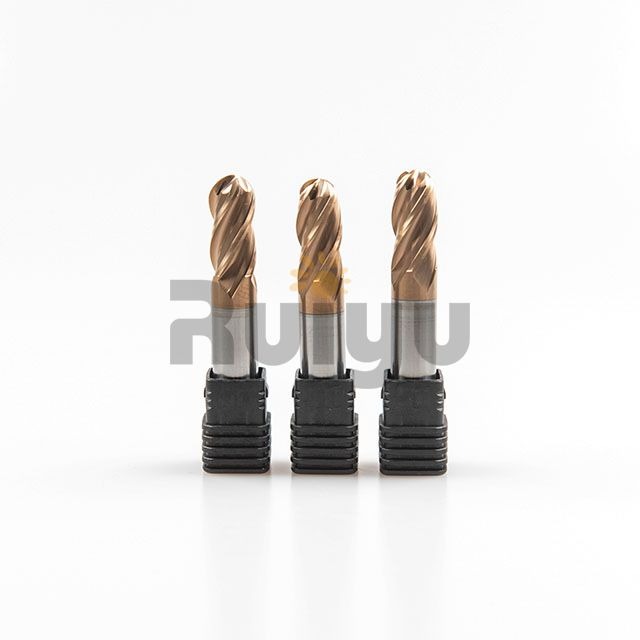

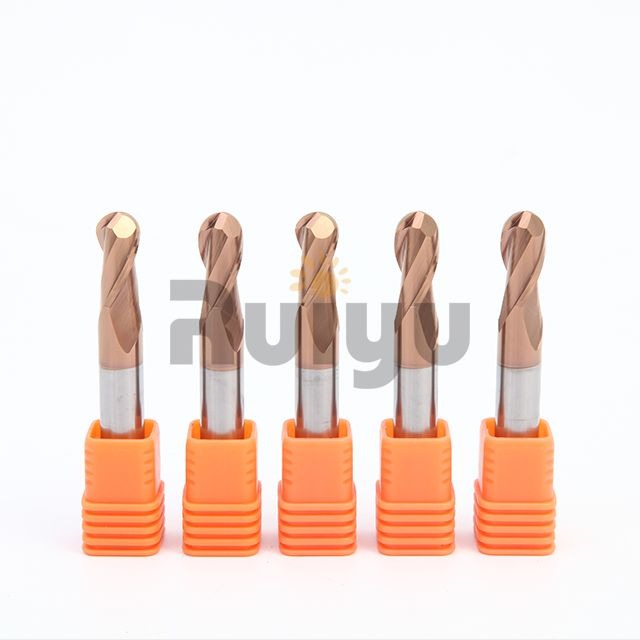

End mills can have various cutting edge geometries, including square, ball nose, and corner radius. Square end mills are used for general milling, while ball nose and corner radius end mills are suitable for contouring and finishing applications, providing smoother finishes.
Consider the flute length and overall length of the end mill. Longer flute lengths provide more rigidity and can reach deeper into the workpiece. However, the overall length should be suitable for your milling setup and the depth of the cut.
The shank diameter should match the collet or chuck size of your milling machine. A proper fit ensures stability during the machining process.
Follow the manufacturer's recommendations for cutting speeds and feed rates based on the type of steel you are machining. Using the correct speeds and feeds optimizes tool life and machining efficiency.
Using appropriate coolant or lubrication is essential when machining steel to dissipate heat and prolong tool life. Some end mills are specifically designed for dry machining, but using coolant or lubrication is often recommended for steel applications.
End mills are designed to efficiently remove material from steel, making the machining process faster and more productive.
End mills allow for precise and accurate cutting, enabling the creation of intricate shapes and designs on steel workpieces.
End mills come in various types and configurations, such as square end mills, ball nose end mills, and corner radius end mills. This variety allows for versatile machining applications on steel, including contouring, slotting, and profiling.
High-quality end mills made from durable materials like carbide have a longer lifespan compared to other cutting tools. They can withstand high temperatures and abrasion, leading to extended tool life and reduced tool replacement costs.
End mills produce a smooth surface finish on steel workpieces, reducing the need for additional finishing processes. This is crucial for applications where surface quality is essential.
The flute design and helix angles of end mills are optimized to efficiently evacuate chips during the machining process. Proper chip removal prevents chip buildup, reducing the risk of tool damage and ensuring consistent cutting performance.
End mills designed for steel can handle high-speed machining operations, allowing for faster feed rates and spindle speeds. This capability increases the overall efficiency of the machining process.
End mills with advanced coatings and geometries reduce friction and heat generation during cutting. This leads to lower power consumption, making the machining process more energy-efficient.
While high-quality end mills may have a higher initial cost, their long tool life and efficiency make them cost-effective in the long run. They reduce downtime due to fewer tool changes and increase overall productivity.
Manufacturers offer a wide range of end mills with customizable features to suit specific steel machining requirements. Customization options include coatings, flute designs, and cutting edge geometries tailored for specific applications and materials.
The purpose of applying a coating to a End Mill For Steel is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for End Mill For Steel. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
End mills are extensively used in milling operations to cut slots, chamfers, contours, and pockets in steel workpieces. They can be used in both roughing and finishing operations.
In the production of dies and molds for metal forming, end mills are used to create complex shapes and contours on steel surfaces with high precision.
End mills are employed in the aerospace sector for machining steel components such as engine parts, structural elements, and brackets. Their ability to maintain tight tolerances and produce smooth finishes is crucial in aerospace applications.
End mills are used in the automotive industry for machining steel parts like engine components, transmission parts, and chassis components. They are capable of producing intricate designs and precise cuts.
End mills play a vital role in the production of various tools and dies used in metalworking processes. They are used to create precise shapes and details on steel tools and dies.
End mills are employed in the manufacturing of medical devices made from steel. They are used to create intricate features on devices such as surgical instruments and implant components.
End mills find applications in general machining processes where steel materials need to be cut, shaped, or profiled for various industrial purposes.
In research and development settings, end mills are used to create prototypes of steel components. Their precision and ability to work with different steel alloys make them ideal for prototyping applications.
Industries involved in custom fabrication, including metal workshops and job shops, use end mills to create custom steel parts tailored to specific customer requirements.
End mills designed for steel are used in high-performance machining applications where speed, accuracy, and efficiency are critical. These applications are common in industries requiring mass production of steel components.
An end mill is a type of milling cutter used in industrial milling applications. It has cutting edges on both its bottom and side, allowing it to remove material from the workpiece. Unlike drills, end mills can cut laterally and axially.
Steel is a hard and tough material. Specialized end mills for steel are designed with coatings and geometries that can withstand the hardness of steel, providing efficient cutting and prolonged tool life.
Look for features like carbide construction, appropriate coatings (TiN, TiCN, TiAlN, etc.), specific flute designs, suitable helix angles, and proper cutting edge geometries. These features enhance tool durability and cutting efficiency for steel materials.
Consider factors such as the type of steel (stainless, carbon, alloy), hardness, and the specific machining operation you're performing (roughing, finishing, profiling). Consult the manufacturer's recommendations and machining guides for selecting the appropriate end mill.
While some end mills are designed for general-purpose use, using specialized end mills for each operation (roughing and finishing) often yields better results. Roughing end mills remove material quickly, while finishing end mills provide a smooth surface finish.
Proper maintenance includes using the right cutting speeds and feeds, using lubrication or coolant, and avoiding excessive heat buildup. Regular inspection for wear and damage and re-sharpening or replacing worn-out end mills is also crucial.
While designed for steel, many end mills can also work with other materials, depending on their construction and coatings. However, using the right tool for the specific material is always recommended for optimal results.
Always wear appropriate personal protective equipment (PPE), including safety glasses and hearing protection. Follow proper machining techniques, secure the workpiece, and ensure the end mill is securely fastened in the machine tool. Additionally, be cautious when handling sharp tools.
Yes, many end mills can be resharpened to extend their lifespan. However, the number of times an end mill can be resharpened depends on factors such as its original quality, the extent of wear, and the expertise of the person performing the sharpening.
Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.
Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.
Yes.We can supply OEM&ODM and make customized design for any specific application.
We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.
Non-standard tools 5-10 Working days,Standard tools usually 1-2 days.
Consult Your Ruiyu Carbide Tools Experts
We help you avoid the pitfalls to deliver the quality and value your Carbide Tools needs, on-time and on-budget.
