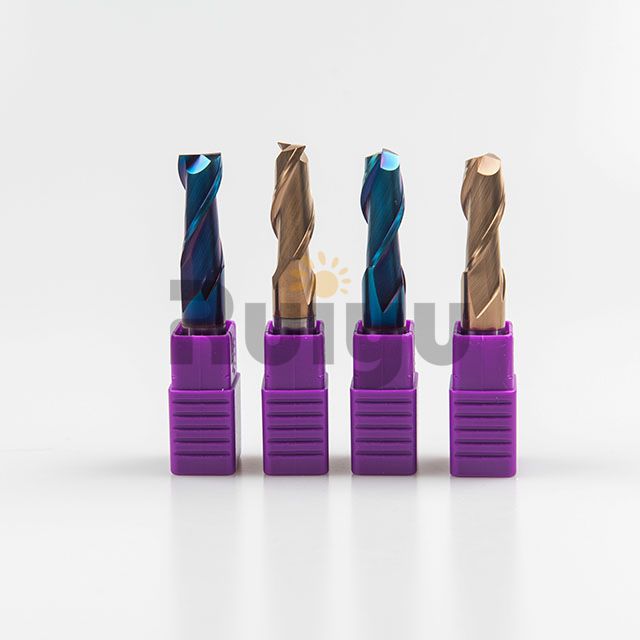

Solid Carbide 2 Flute Square End Mill
2 Flute
Spiral
High Speed Cutting
Cast Iron, Alloy Steel, Tool Steel,Stainless Steel, High-temp Alloys, Titanium Alloys, Non-ferrous Alloys
TiAlN, TiSiN, Nano
0.005-0.01
Stub, Standard, Extra-Long,38-330mm
| Quantity: | |
|---|---|
| Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| D1*3*D4*50 | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50 | 2 | 6 | 4 | 50 |
| D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
| D3*8*D4*50 | 3 | 8 | 4 | 50 |
| D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50 | 4 | 10 | 4 | 50 |
| D5*13*D6*50 | 5 | 13 | 6 | 50 |
| D6*15*D6*50 | 6 | 15 | 6 | 50 |
| D8*20*D8*60 | 8 | 20 | 8 | 60 |
| D10*25*D10*75 | 10 | 25 | 10 | 75 |
| D12*30*D12*75 | 12 | 30 | 12 | 75 |
| D14*45*D14*100 | 14 | 45 | 14 | 100 |
| D16*45*D16*100 | 16 | 45 | 16 | 100 |
| D18*45*D18*100 | 18 | 45 | 18 | 100 |
| D20*45*D20*100 | 20 | 45 | 20 | 100 |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D4*12*D4*75 | 4 | 12 | 4 | 75 |
D4*16*D4*100 | 4 | 16 | 4 | 100 |
D6*20*D6*75 | 6 | 20 | 6 | 75 |
D6*30*D6*100 | 6 | 30 | 6 | 100 |
D8*25*D8*75 | 8 | 25 | 8 | 75 |
D8*35*D8*100 | 8 | 35 | 8 | 100 |
D10*40*D10*100 | 10 | 40 | 10 | 100 |
D12*45*D12*100 | 12 | 45 | 12 | 100 |
D6*35*D6*150 | 6 | 35 | 6 | 150 |
D8*40*D8*150 | 8 | 40 | 8 | 150 |
D10*50*D10*150 | 10 | 50 | 10 | 150 |
D12*60*D12*150 | 12 | 60 | 12 | 150 |
D14*65*D14*150 | 14 | 65 | 14 | 150 |
D16*70*D16*150 | 16 | 70 | 16 | 150 |
D18*70*D18*150 | 18 | 70 | 18 | 150 |
D20*70*D20*150 | 20 | 70 | 20 | 150 |
The defining characteristic of 2-flute end mills is that they have two helical cutting edges or flutes. These flutes extend along the length of the tool and are responsible for the material removal during machining.
While not as open as a single flute design, 2-flute end mills still provide effective chip evacuation. The presence of two flutes helps create channels for chip removal, reducing the risk of chip buildup and allowing for efficient material evacuation.
2-flute end mills are versatile and can be used in a wide range of milling applications. They strike a balance between material removal rates and surface finish, making them suitable for both roughing and finishing operations.
The two flutes distribute cutting forces more evenly compared to single flute end mills. This balance contributes to stability during cutting, reducing the likelihood of vibration and improving tool life.
2-flute end mills are often chosen for machining softer materials such as plastics, wood, and non-ferrous metals. The geometry of the tool helps achieve efficient material removal in these applications.
While not as fine as end mills with more flutes, 2-flute end mills can still provide a good surface finish. They are often used in finishing operations where a smooth surface is a priority.
The geometry of 2-flute end mills allows for higher feed rates compared to end mills with more flutes. This can result in faster material removal, making them suitable for applications where productivity is a key consideration.
With fewer flutes in contact with the material, 2-flute end mills tend to generate less heat during cutting. This characteristic can be advantageous in preventing overheating of the tool and workpiece.
The two flutes make 2-flute end mills well-suited for slotting and pocketing operations. The tool can efficiently engage with the material and create slots or pockets with good precision.
The two flutes distribute cutting forces more evenly compared to single-flute end mills. This balance contributes to greater stability during cutting, reducing the risk of vibration and improving overall tool life.
2-flute end mills are versatile tools suitable for a wide range of milling applications. They are often used for both roughing and finishing operations, providing a balance between material removal rates and surface finish.
The presence of two flutes helps in creating effective channels for chip evacuation. While not as open as single-flute designs, 2-flute end mills still allow for efficient removal of chips from the cutting area, reducing the risk of chip recutting.
These end mills are well-suited for machining softer materials, such as plastics, wood, and non-ferrous metals. The geometry of the tool facilitates efficient material removal in these applications.
2-flute end mills can provide a good surface finish, making them suitable for finishing operations where achieving a smooth surface is a priority. The reduced number of flutes can result in less tool marks on the machined surface.
The geometry of 2-flute end mills allows for higher feed rates compared to end mills with more flutes. This can lead to faster material removal and increased productivity in applications where high feed rates are desirable.
With fewer flutes in contact with the material, 2-flute end mills tend to generate less heat during cutting. This characteristic can be advantageous in preventing overheating of the tool and workpiece, especially in applications where heat dissipation is a concern.
The design of 2-flute end mills makes them well-suited for slotting and pocketing operations. The tool can efficiently engage with the material and create precise slots or pockets.
Two-flute end mills are often more cost-effective than end mills with a higher number of flutes. This can make them a practical choice for certain applications where a balance between cost and performance is important.
The purpose of applying a coating to a 2-flute end mills is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for 2-flute end mills. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
A 2-flute end mill is a type of cutting tool commonly used in machining and milling operations. It is characterized by having two cutting edges or flutes on its cylindrical body. The design of a 2-flute end mill makes it suitable for a variety of applications across different materials and industries. Here are some common applications for 2-flute end mills:
2-flute end mills are often used for slotting and profiling operations. The two cutting edges help create precise slots and profiles in a workpiece, such as keyways in shafts or channels in molds.
These end mills can be used for face milling to create flat surfaces on the workpiece. The two flutes aid in efficiently removing material from the surface, resulting in a smoother finish.
When machining complex shapes or contours, a 2-flute end mill can navigate the curves and angles effectively. It allows for smooth and accurate material removal while maintaining part integrity.
While not primarily designed for drilling, 2-flute end mills can be used for drilling shallow holes. The end mill's center cutting design enables it to create holes with precision, making it a viable option for certain drilling applications.
2-flute end mills can also be employed in roughing operations, where larger amounts of material need to be removed quickly. The two flutes help in efficient chip evacuation, preventing clogging and promoting smoother cutting.
Plunge milling involves directly plunging the end mill into the material to create pockets or holes. A 2-flute end mill can handle plunging effectively due to its design, making it suitable for tasks like pocketing or contouring.
2-flute end mills are often preferred for machining softer materials like plastics, aluminum, and wood. The reduced number of flutes helps prevent chip clogging and improves chip evacuation, leading to better surface finishes.
When a fine surface finish is desired, a 2-flute end mill can be used for finishing passes. The fewer flutes reduce the chances of leaving marks or lines on the workpiece surface.
In cases where the milling machine has limited power or rigidity, a 2-flute end mill can be advantageous. The reduced cutting forces generated by fewer flutes help prevent excessive strain on the machine.
For materials that are prone to overheating during machining, such as certain plastics or heat-sensitive alloys, a 2-flute end mill can help minimize heat buildup due to its efficient chip evacuation.
An end mill is a cutting tool used in machining and industrial milling processes. A 2 flute end mill, as the name suggests, has two cutting edges or flutes. These flutes play a crucial role in the machining process, allowing the end mill to efficiently remove material from a workpiece. The flutes are designed to create a helical path for the chips (material being removed) to escape, preventing chip congestion and ensuring smoother cutting.
Using a 2 flute end mill offers several advantages in machining operations. These advantages stem from the design and characteristics of the tool, making it a popular choice in various applications.
（1）Efficient chip evacuation: The two flutes provide ample space for chips to evacuate, reducing the chances of chip clogging and promoting smoother cutting.
（2）Enhanced rigidity: With fewer flutes, the end mill tends to have greater rigidity, allowing for more stable and precise machining, especially in tougher materials.
（3）Increased feed rates: The reduced number of flutes allows for higher feed rates, enabling faster material removal while maintaining good chip control.
A 2 flute end mill is a versatile tool suitable for machining a wide range of materials. Its design and characteristics make it particularly effective for certain types of materials.
（1）Soft materials: It is well-suited for machining softer materials like plastics, aluminum, and brass, where efficient chip evacuation and smooth cutting are essential.
（2）Non-ferrous metals: The end mill can effectively handle non-ferrous metals such as copper and bronze due to its ability to prevent chip congestion.
（3）Wood and composites: When working with wood and composite materials, the 2 flute end mill provides clean cuts and prevents excessive heat buildup.
Selecting the right 2 flute end mill for a specific machining task requires careful consideration of various factors to ensure optimal performance and tool longevity.
（1）Material to be machined: Different materials require different end mill coatings and geometries. Consider the workpiece material's hardness, abrasiveness, and thermal conductivity.
（2）Cutting conditions: Evaluate the cutting speed, feed rate, and depth of cut required for the task. Properly matching these parameters with the end mill's capabilities will yield better results.
（3）Desired finish: Depending on the application, you might prioritize surface finish. In such cases, selecting an appropriate flute geometry and coating can contribute to achieving the desired outcome.
Proper maintenance can significantly extend the lifespan of a 2 flute end mill and ensure consistent performance over time.
（1）Cooling and lubrication: Using appropriate cutting fluids or lubricants helps dissipate heat, reduce friction, and prevent premature tool wear.
（2）Proper speeds and feeds: Avoid pushing the tool beyond its recommended cutting parameters, as this can lead to excessive wear and potential tool failure.
（3）Tool storage: Store end mills in a clean, dry environment to prevent rust and damage. Using protective tool holders can also safeguard the tool during storage.
Ruiyu is a manufacturer of Carbide Cutting Tools: End Mills, Drills, Routers, Chamfer Mills and Specials.
We have precision detection machine, quality inspectors check cutters every piece to guarantee the quality of the products.
Yes, we have professional technician with rich experience and will deliver the samples for the approval before bulk production.
