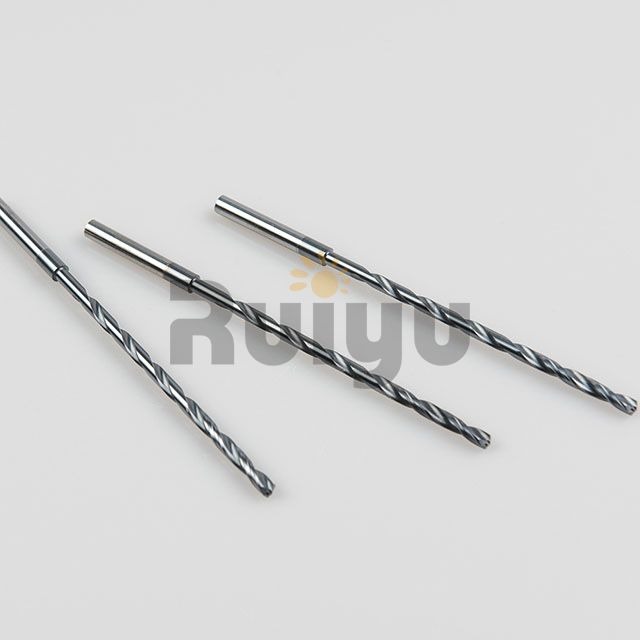

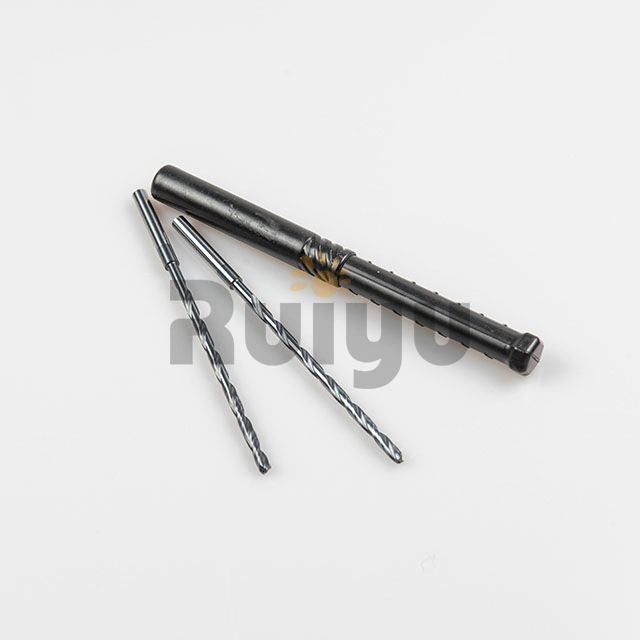

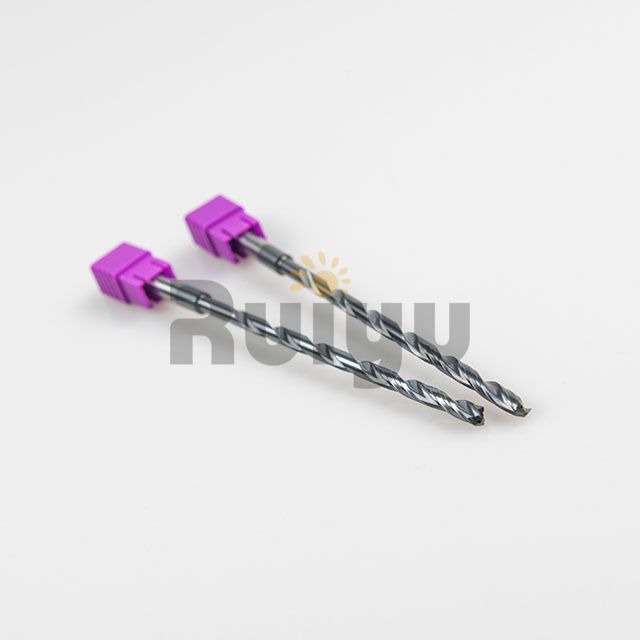

Carbide Drill Bits For Tile


Specifications Of Carbide Drill Bits For Tile


1、Carbide Drill Bits For Tile Standard type


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D3.1*20*D6*62

3.1

20

6

62


D9.4*47*D10*89

9.4

47

10

89

D3.2*20*D6*62

3.2

20

6

62


D9.5*47*D10*89

9.5

47

10

89

D3.3*20*D6*62

3.3

20

6

62


D9.6*47*D10*89

9.6

47

10

89

D3.4*20*D6*62

3.4

20

6

62


D9.7*47*D10*89

9.7

47

10

89

D3.5*20*D6*62

3.5

20

6

62


D9.8*47*D10*89

9.8

47

10

89

D3.6*20*D6*62

3.6

20

6

62


D9.9*47*D10*89

9.9

47

10

89

D3.7*20*D6*62

3.7

20

6

62


D10*47*D10*89

10

47

10

89

D3.8*24*D6*66

3.8

24

6

66


D10.1*55*D12*102

10.1

55

12

102

D3.9*24*D6*66

3.9

24

6

66


D10.2*55*D12*102

10.2

55

12

102

D4*24*D6*66

4

24

6

66


D10.3*55*D12*102

10.3

55

12

102

D4.1*24*D6*66

4.1

24

6

66


D10.4*55*D12*102

10.4

55

12

102

D4.2*24*D6*66

4.2

24

6

66


D10.5*55*D12*102

10.5

55

12

102

D4.3*24*D6*66

4.3

24

6

66


D10.6*55*D12*102

10.6

55

12

102

D4.4*24*D6*66

4.4

24

6

66


D10.7*55*D12*102

10.7

55

12

102

D4.5*24*D6*66

4.5

24

6

66


D10.8*55*D12*102

10.8

55

12

102

D4.6*24*D6*66

4.6

24

6

66


D10.9*55*D12*102

10.9

55

12

102

D4.7*24*D6*66

4.7

24

6

66


D11*55*D12*102

11

55

12

102

D4.8*28*D6*66

4.8

28

6

66


D11.1*55*D12*102

11.1

55

12

102

D4.9*28*D6*66

4.9

28

6

66


D11.2*55*D12*102

11.2

55

12

102

D5*28*D6*66

5

28

6

66


D11.3*55*D12*102

11.3

55

12

102

D5.1*28*D6*66

5.1

28

6

66


D11.4*55*D12*102

11.4

55

12

102

D5.2*28*D6*66

5.2

28

6

66


D11.5*55*D12*102

11.5

55

12

102

D5.3*28*D6*66

5.3

28

6

66


D11.6*55*D12*102

11.6

55

12

102

D5.4*28*D6*66

5.4

28

6

66


D11.7*55*D12*102

11.7

55

12

102

D5.5*28*D6*66

5.5

28

6

66


D11.8*55*D12*102

11.8

55

12

102

D5.6*28*D6*66

5.6

28

6

66


D11.9*55*D12*102

11.9

55

12

102

D5.7*28*D6*66

5.7

28

6

66


D12*55*D12*102

12

55

12

102

D5.8*28*D6*66

5.8

28

6

66


D12.1*60*D14*107

12.1

60

14

107

D5.9*28*D6*66

5.9

28

6

66


D12.2*60*D14*107

12.2

60

14

107

D6*28*D6*66

6

28

6

66


D12.3*60*D14*107

12.3

60

14

107

D6.1*34*D8*79

6.1

34

8

79


D12.4*60*D14*107

12.4

60

14

107

D6.2*34*D8*79

6.2

34

8

79


D12.5*60*D14*107

12.5

60

14

107

D6.3*34*D8*79

6.3

34

8

79


D12.6*60*D14*107

12.6

60

14

107

D6.4*34*D8*79

6.4

34

8

79


D12.7*60*D14*107

12.7

60

14

107

D6.5*34*D8*79

6.5

34

8

79


D12.8*60*D14*107

12.8

60

14

107

D6.6*34*D8*79

6.6

34

8

79


D12.9*60*D14*107

12.9

60

14

107

D6.7*34*D8*79

6.7

34

8

79


D13*60*D14*107

13

60

14

107

D6.8*34*D8*79

6.8

34

8

79


D13.2*60*D14*107

13.2

60

14

107

D6.9*34*D8*79

6.9

34

8

79


D13.3*60*D14*107

13.3

60

14

107

D7*34*D8*79

7

34

8

79


D13.5*60*D14*107

13.5

60

14

107

D7.1*41*D8*79

7.1

41

8

79


D13.7*60*D14*107

13.7

60

14

107

D7.2*41*D8*79

7.2

41

8

79


D13.8*60*D14*107

13.8

60

14

107

D7.3*41*D8*79

7.3

41

8

79


D14*60*D14*107

14

60

14

107

D7.4*41*D8*79

7.4

41

8

79


D14.2*65*D16*115

14.2

65

16

115

D7.5*41*D8*79

7.5

41

8

79


D14.3*65*D16*115

14.3

65

16

115

D7.6*41*D8*79

7.6

41

8

79


D14.4*65*D16*115

14.4

65

16

115

D7.7*41*D8*79

7.7

41

8

79


D14.5*65*D16*115

14.5

65

16

115

D7.8*41*D8*79

7.8

41

8

79


D14.7*65*D16*115

14.7

65

16

115

D7.9*41*D8*79

7.9

41

8

79


D15*65*D16*115

15

65

16

115

D8*41*D8*79

8

41

8

79


D15.2*65*D16*115

15.2

65

16

115

D8.1*47*D10*89

8.1

47

10

89


D15.5*65*D16*115

15.5

65

16

115

D8.2*47*D10*89

8.2

47

10

89


D15.6*65*D16*115

15.6

65

16

115

D8.3*47*D10*89

8.3

47

10

89


D15.7*65*D16*115

15.7

65

16

115

D8.4*47*D10*89

8.4

47

10

89


D15.8*65*D16*115

15.8

65

16

115

D8.5*47*D10*89

8.5

47

10

89


D16*65*D16*115

16

65

16

115

D8.6*47*D10*89

8.6

47

10

89


D16.5*73*D18*123

16.5

73

18

123

D8.7*47*D10*89

8.7

47

10

89


D17*73*D18*123

17

73

18

123

D8.8*47*D10*89

8.8

47

10

89


D17.5*73*D18*123

17.5

73

18

123

D8.9*47*D10*89

8.9

47

10

89


D18*73*D18*123

18

73

18

123

D9*47*D10*89

9

47

10

89


D18.5*79*D20*131

18.5

79

20

131

D9.1*47*D10*89

9.1

47

10

89


D19*79*D20*131

19

79

20

131

D9.2*47*D10*89

9.2

47

10

89


D19.5*79*D20*131

19.5

79

20

131

D9.3*47*D10*89

9.3

47

10

89


D20*79*D20*131

20

79

20

131


2、Carbide Drill Bits For Tile Standard type


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)


Model No.

Flute Diameter (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D3.1*28*D6*66

3.1

28

6

66


D9.4*61*D10*103

9.4

61

10

103

D3.2*28*D6*66

3.2

28

6

66


D9.5*61*D10*103

9.5

61

10

103

D3.3*28*D6*66

3.3

28

6

66


D9.6*61*D10*103

9.6

61

10

103

D3.4*28*D6*66

3.4

28

6

66


D9.7*61*D10*103

9.7

61

10

103

D3.5*28*D6*66

3.5

28

6

66


D9.8*61*D10*103

9.8

61

10

103

D3.6*28*D6*66

3.6

28

6

66


D9.9*61*D10*103

9.9

61

10

103

D3.7*28*D6*66

3.7

28

6

66


D10*61*D10*103

10

61

10

103

D3.8*36*D6*74

3.8

36

6

74


D10.1*71*D12*118

10.1

71

12

118

D3.9*36*D6*74

3.9

36

6

74


D10.2*71*D12*118

10.2

71

12

118

D4*36*D6*74

4

36

6

74


D10.3*71*D12*118

10.3

71

12

118

D4.1*36*D6*74

4.1

36

6

74


D10.4*71*D12*118

10.4

71

12

118

D4.2*36*D6*74

4.2

36

6

74


D10.5*71*D12*118

10.5

71

12

118

D4.3*36*D6*74

4.3

36

6

74


D10.6*71*D12*118

10.6

71

12

118

D4.4*36*D6*74

4.4

36

6

74


D10.7*71*D12*118

10.7

71

12

118

D4.5*36*D6*74

4.5

36

6

74


D10.8*71*D12*118

10.8

71

12

118

D4.6*36*D6*74

4.6

36

6

74


D10.9*71*D12*118

10.9

71

12

118

D4.7*36*D6*82

4.7

36

6

82


D11*71*D12*118

11

71

12

118

D4.8*44*D6*82

4.8

44

6

82


D11.1*71*D12*118

11.1

71

12

118

D4.9*44*D6*82

4.9

44

6

82


D11.2*71*D12*118

11.2

71

12

118

D5*44*D6*82

5

44

6

82


D11.3*71*D12*118

11.3

71

12

118

D5.1*44*D6*82

5.1

44

6

82


D11.4*71*D12*118

11.4

71

12

118

D5.2*44*D6*82

5.2

44

6

82


D11.5*71*D12*118

11.5

71

12

118

D5.3*44*D6*82

5.3

44

6

82


D11.6*71*D12*118

11.6

71

12

118

D5.4*44*D6*82

5.4

44

6

82


D11.7*71*D12*118

11.7

71

12

118

D5.5*44*D6*82

5.5

44

6

82


D11.8*71*D12*118

11.8

71

12

118

D5.6*44*D6*82

5.6

44

6

82


D11.9*71*D12*118

11.9

71

12

118

D5.7*44*D6*82

5.7

44

6

82


D12*71*D12*118

12

71

12

118

D5.8*44*D6*82

5.8

44

6

82


D12.1*77*D14*124

12.1

77

14

124

D5.9*44*D6*82

5.9

44

6

82


D12.2*77*D14*124

12.2

77

14

124

D6*44*D6*82

6

44

6

82


D12.3*77*D14*124

12.3

77

14

124

D6.1*53*D8*91

6.1

53

8

91


D12.4*77*D14*124

12.4

77

14

124

D6.2*53*D8*91

6.2

53

8

91


D12.5*77*D14*124

12.5

77

14

124

D6.3*53*D8*91

6.3

53

8

91


D12.6*77*D14*124

12.6

77

14

124

D6.4*53*D8*91

6.4

53

8

91


D12.7*77*D14*124

12.7

77

14

124

D6.5*53*D8*91

6.5

53

8

91


D12.8*77*D14*124

12.8

77

14

124

D6.6*53*D8*91

6.6

53

8

91


D12.9*77*D14*124

12.9

77

14

124

D6.7*53*D8*91

6.7

53

8

91


D13*77*D14*124

13

77

14

124

D6.8*53*D8*91

6.8

53

8

91


D13.2*77*D14*124

13.2

77

14

124

D6.9*53*D8*91

6.9

53

8

91


D13.3*77*D14*124

13.3

77

14

124

D7*53*D8*91

7

53

8

91


D13.5*77*D14*124

13.5

77

14

124

D7.1*53*D8*91

7.1

53

8

91


D13.7*77*D14*124

13.7

77

14

124

D7.2*53*D8*91

7.2

53

8

91


D13.8*77*D14*124

13.8

77

14

124

D7.3*53*D8*91

7.3

53

8

91


D14*77*D14*124

14

77

14

124

D7.4*53*D8*91

7.4

53

8

91


D14.2*83*D16*133

14.2

83

16

133

D7.5*53*D8*91

7.5

53

8

91


D14.3*83*D16*133

14.3

83

16

133

D7.6*53*D8*91

7.6

53

8

91


D14.4*83*D16*133

14.4

83

16

133

D7.7*53*D8*91

7.7

53

8

91


D14.5*83*D16*133

14.5

83

16

133

D7.8*53*D8*91

7.8

53

8

91


D14.7*83*D16*133

14.7

83

16

133

D7.9*53*D8*91

7.9

53

8

91


D15*83*D16*133

15

83

16

133

D8*53*D8*91

8

53

8

91


D15.2*83*D16*133

15.2

83

16

133

D8.1*61*D10*103

8.1

61

10

103


D15.5*83*D16*133

15.5

83

16

133

D8.2*61*D10*103

8.2

61

10

103


D15.6*83*D16*133

15.6

83

16

133

D8.3*61*D10*103

8.3

61

10

103


D15.7*83*D16*133

15.7

83

16

133

D8.4*61*D10*103

8.4

61

10

103


D15.8*83*D16*133

15.8

83

16

133

D8.5*61*D10*103

8.5

61

10

103


D16*83*D16*133

16

83

16

133

D8.6*61*D10*103

8.6

61

10

103


D16.5*93*D18*143

16.5

93

18

143

D8.7*61*D10*103

8.7

61

10

103


D17*93*D18*143

17

93

18

143

D8.8*61*D10*103

8.8

61

10

103


D17.5*93*D18*143

17.5

93

18

143

D8.9*61*D10*103

8.9

61

10

103


D18*93*D18*143

18

93

18

143

D9*61*D10*103

9

61

10

103


D18.5*101*D20*153

18.5

101

20

153

D9.1*61*D10*103

9.1

61

10

103


D19*101*D20*153

19

101

20

153

D9.2*61*D10*103

9.2

61

10

103


D19.5*101*D20*153

19.5

101

20

153

D9.3*61*D10*103

9.3

61

10

103


D20*101*D20*153

20

101

20

153


Features Of Carbide Drill Bits For Tile


1、Carbide Tipped:

Carbide drill bits for tile have a carbide tip, which is incredibly hard and durable. This carbide tip allows the drill bit to withstand the hardness of tiles and ensures longevity.


2、Sharp Cutting Edge:

Carbide tile drill bits have a sharp cutting edge that enables precise and clean drilling through tiles without chipping or cracking the material.


3、Spiral Flutes:

Many carbide tile drill bits come with spiral flutes that help in removing debris and tile particles from the hole while drilling. This design ensures a smooth drilling process and prevents clogging.


4、Hex Shank:

Carbide drill bits for tile often feature a hexagonal shank. The hex shank provides a secure grip in the drill chuck, preventing slipping during the drilling process.


5、Coolant Lubrication:

Some carbide tile drill bits require coolant or lubrication during drilling to prevent overheating and to prolong the life of the bit. Coolant also helps in reducing friction and ensures a smoother drilling experience.


6、Wide Range of Sizes:

Carbide drill bits for tile are available in various sizes to accommodate different drilling needs, from small holes for mosaic tiles to larger holes for plumbing or electrical installations.


7、Versatility:

Carbide drill bits designed for tile can also be used for drilling through other hard materials like glass and certain metals, making them versatile tools in various applications.


8、Precision Drilling:

Carbide tile drill bits offer precision drilling, allowing for accurate placement of holes in tiles. This precision is essential, especially in tile installation where alignment is crucial.


9、Reduced Breakage:

The hardness of carbide significantly reduces the risk of breakage or damage, even when drilling through tough and brittle tile surfaces.


10、Longevity:

Carbide drill bits for tile have a longer lifespan compared to regular steel bits when used for drilling through hard materials. They maintain their sharpness for a more extended period, reducing the frequency of replacements.


11、High Heat Resistance:

Carbide materials can withstand high temperatures generated during the drilling process, ensuring that the drill bit remains effective and durable even under intense heat conditions.


Advantages Of Carbide Drill Bits For Tile:


1、Precision Drilling:

Carbide drill bits provide precise and accurate drilling, allowing for clean holes in tiles without chipping or cracking. This precision is essential in tile installations where accuracy is crucial.


2、Durability:

Carbide is an exceptionally hard material, making carbide drill bits highly durable. They can withstand the hardness of ceramic and porcelain tiles, ensuring a longer lifespan compared to regular steel bits.


3、Reduced Chipping:

The sharp cutting edges of carbide bits minimize chipping and splintering of the tile surface, creating smooth and polished holes without damaging the surrounding area.


4、Versatility:

Carbide drill bits designed for tiles can also be used on other hard materials like glass, stone, and certain metals, making them versatile tools in various applications beyond tile drilling.


5、Efficiency:

Due to their hardness, carbide drill bits drill through tiles more efficiently than standard steel bits. They require less effort and time to create holes, making them ideal for both professional and DIY projects.


6、Clean Holes:

Carbide bits create clean and precise holes with smooth edges, ensuring a professional-looking finish. This is particularly important in tile installations where aesthetics matter.


7、Less Heat Generation:

Carbide drill bits generate less heat during the drilling process due to their efficient cutting, reducing the risk of overheating and damage to the tile. This characteristic prolongs the life of the bit and preserves the integrity of the material being drilled.


8、Minimal Maintenance:

Carbide drill bits require less frequent sharpening or replacement compared to softer materials, reducing maintenance efforts and costs in the long run.


9、Wide Range of Sizes:

Carbide drill bits for tiles come in various sizes, allowing users to choose the right bit for specific hole diameter requirements. This versatility ensures suitability for different tile sizes and applications.


10、Suitable for High-Volume Production:

Carbide drill bits are ideal for industrial applications where large volumes of tiles need to be drilled quickly and consistently due to their speed, durability, and efficiency.


Coatings Of Carbide Drill Bits For Tile:


The purpose of applying a coating to a Carbide Drill Bits For Tile is to enhance its performance, durability, and overall effectiveness in various machining operations.


Titanium Nitride (TiN):

TiN is a popular coating choice for Carbide Drill Bits For Tile. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.


Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.


Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.


Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.


Applications Of Carbide Drill Bits For Tile


1、Tile Installations:

Carbide drill bits are essential for installing tiles on walls, floors, and countertops. They are used to create holes for screws, anchors, and other fasteners needed to secure tiles in place.


2、Plumbing:

Carbide drill bits are used in plumbing applications to create holes in tiles for installing pipes, faucets, and other plumbing fixtures. These precise holes ensure a secure fit for plumbing connections.


3、Electrical Work:

Electricians use carbide drill bits to create openings in tiles for outlets, switches, and wiring, allowing for safe and concealed electrical installations in tiled surfaces.


4、Home Improvement Projects:

Carbide drill bits are valuable tools for DIY enthusiasts working on home improvement projects. They are used for tasks such as mounting shelves, mirrors, and decorative items on tiled walls.


5、Bathroom Fixtures:

Carbide drill bits are used to drill holes in tiles for installing bathroom fixtures like towel bars, soap dispensers, and shower curtain rods. The precision of these holes ensures a neat and secure attachment.


6、Tile Repairs:

When tiles need replacement or repair, carbide drill bits are used to carefully remove damaged tiles without causing further damage to the surrounding tiles. They are also used to create holes for new tile installations in repair projects.


7、Outdoor Tile Installations:

Carbide drill bits are used in outdoor tile projects, such as patio and pool area installations. They create holes for drainage systems, anchors, and other outdoor fixtures.


8、Tile Mosaics:

Artists and crafters use carbide drill bits to create intricate mosaic designs using tiles. These bits allow for precise drilling, enabling the creation of detailed and visually appealing mosaic artwork.


9、Commercial Tile Installations:

Carbide drill bits are widely used in commercial settings, such as hotels, restaurants, and office buildings, for various tile installations and modifications required in these spaces.


10、Architectural Projects:

Carbide drill bits are employed in architectural projects where tiles are used as decorative elements on building facades, interior walls, and public spaces. They are used to create holes for artistic and functional tile installations.


11、Industrial Applications:

In industrial settings, carbide drill bits are used for drilling tiles in manufacturing processes where tiles are utilized for specific applications, such as heat-resistant tiles in industrial furnaces.


Video Of Carbide Drill Bits For Tile


FAQs Of Carbide Drill Bits For Tile


1、Can carbide drill bits be used on all types of tiles?

Carbide drill bits are suitable for drilling through most types of tiles, including ceramic, porcelain, and natural stone tiles. However, it's important to adjust the drilling speed and apply sufficient pressure based on the specific tile material to prevent damage.


2、How do I prevent overheating when using carbide drill bits on tiles?

To prevent overheating, it's essential to use a constant flow of water or a suitable coolant/lubricant while drilling. This helps in dissipating heat and prolongs the life of the carbide drill bit.


3、Can carbide drill bits be used with a regular handheld drill?

Yes, carbide drill bits can be used with a regular handheld drill. However, using a drill press provides better stability and control, especially for larger or more intricate drilling tasks, ensuring accurate and precise holes.


4、What is the maximum thickness of tile that carbide drill bits can handle?

Carbide drill bits can handle various tile thicknesses. The key is to choose the right size and type of carbide drill bit for the specific tile material and thickness. Generally, they are effective for tiles up to 1 inch thick.


5、Can carbide drill bits be sharpened if they become dull?

Carbide drill bits can be sharpened, but it requires specialized equipment and expertise. For most users, it's more practical to replace a dull carbide bit, especially for precision tasks, to ensure optimal drilling performance.


6、Are there specific safety precautions I should take when using carbide drill bits on tiles?

Yes, safety is paramount. Always wear safety goggles and gloves to protect your eyes and hands from tile fragments. Additionally, work in a well-ventilated area and follow the manufacturer's guidelines for safe operation. Using proper coolant/lubricant also minimizes heat-related risks.


7、Can carbide drill bits be used for drilling holes near the edge of tiles?

Yes, carbide drill bits can be used for drilling holes near the edge of tiles. However, it requires extra care and precision to avoid chipping or cracking. Using a stable work surface and starting with a smaller pilot hole can help prevent damage near the tile edges.


8、How can I choose the right size of carbide drill bit for my tile project?

Choose the drill bit size based on the diameter of the hole you need. Carbide drill bits come in various sizes, so select one that matches your specific project requirements. It's crucial to use the right size to achieve accurate and clean holes.


9、Are carbide drill bits suitable for drilling holes in glass mosaic tiles?

Yes, carbide drill bits are suitable for drilling holes in glass mosaic tiles. However, it's important to use a slow drilling speed and apply light pressure to prevent cracking or chipping of the delicate mosaic tiles.


FAQs for the factory :


1、Are you a factory?

Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.


2、How to select models?

Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.


3、Do you offer OEM & ODM service?

Yes.We can supply OEM&ODM and make customized design for any specific application.


4、How can we know the product quality?

We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.


5、What's the delivery time?

Non-standard tools 5-10 Working days,Standard tools usually 1-2 days.


Consult Your Ruiyu Carbide Tools Experts

We help you avoid the pitfalls to deliver the quality and value your Carbide Tools needs, on-time and on-budget.

Our team is here to serve you.

Products

Quick Links

Contact Us

   rita@ruiyutool.com
  +86-13357881369
   No,6 Weishanhu Road, Xixiashu Town, Xinbei District, Changzhou City
© COPYRIGHT 2022 CHANGZHOU RUIYU TOOL CO.,LTD ALL RIGHTS RESERVED.
