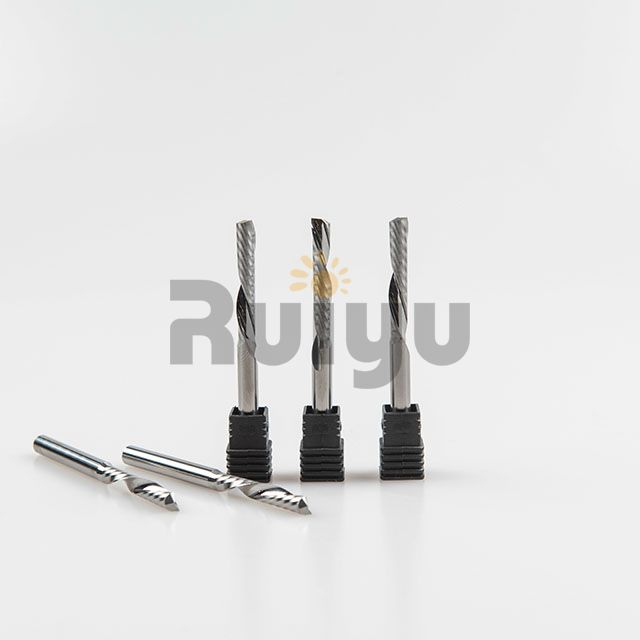

Single Flute End Mill For Aluminum

Specifications of Single Flute End Mill For Aluminum

1、Single Flute End Mill For Aluminum Standard type

Model No.	Flute Diameter (mm)	Flute length (mm)	Shank Diameter (mm)	Overall length (mm)
D1.0*3*D3.175*38.5	1	3	3.175	38.5
D1.5*6*D3.175*38.5	1.5	6	3.175	38.5
D1.5*8*D3.175*38.5	1.5	8	3.175	38.5
D1.5*12*D3.175*38.5	1.5	12	3.175	38.5
D2.0*8*D3.175*38.5	2	8	3.175	38.5
D2.0*12*D3.175*38.5	2	12	3.175	38.5
D2.0*17*D3.175*38.5	2	17	3.175	38.5
D2.5*10*D3.175*38.5	2.5	10	3.175	38.5
D2.5*12*D3.175*38.5	2.5	12	3.175	38.5
D2.5*17*D3.175*38.5	2.5	17	3.175	38.5
D2.5*22*D3.175*45	2.5	22	3.175	45
D3.175*12*D3.175*38.5	3.175	12	3.175	38.5
D3.175*15*D3.175*38.5	3.175	15	3.175	38.5
D3.175*17*D3.175*38.5	3.175	17	3.175	38.5
D3.175*22*D3.175*45	3.175	22	3.175	38.5
D3.175*25*D3.175*50	3.175	25	3.175	38.5
D3.175*28*D3.175*50	3.175	28	3.175	38.5
D3.175*32*D3.175*55	3.175	32	3.175	38.5
D4*12*D4*45	4	12	4	45
D4*15*D4*45	4	15	4	45
D4*17*D4*45	4	17	4	45
D4*22*D4*45	4	22	4	45
D4*25*D4*50	4	25	4	45
D4*28*D4*55	4	28	4	55
D4*32*D4*60	4	32	4	60
D5*17*D5*50	5	17	5	50
D5*22*D5*50	5	22	5	50
D5*25*D5*50	5	25	5	50
D5*32*D5*60	5	32	5	60
D5*42*D5*70	5	42	5	70
D6*17*D6*50	6	17	6	50
D6*22*D6*50	6	22	6	50
D6*25*D6*50	6	25	6	50
D6*28*D6*55	6	28	6	55
D6*32*D6*55	6	32	6	55
D6*35*D6*60	6	35	6	60
D6*42*D6*75	6	42	6	75
D6*52*D6*75	6	52	6	75
D6*62*D6*100	6	62	6	100
D8*17*D8*60	8	17	8	60
D8*22*D8*60	8	22	8	60
D8*25*D8*60	8	25	8	60
D8*32*D8*60	8	32	8	60
D8*42*D8*75	8	42	8	75
D8*52*D8*100	8	52	8	100
D10*22*D10*75	10	22	10	75
D10*32*D10*75	10	32	10	75
D10*42*D10*75	10	42	10	75
D10*52*D10*100	10	52	10	100
D12*22*D12*75	12	22	12	75
D12*32*D12*75	12	32	12	75
D12*42*D12*75	12	42	12	75
D12*52*D12*100	12	52	12	100

Features of Single Flute End Mill For Aluminum

1、Single Flute Design:

The most distinctive feature of these end mills is their single flute, which means they have only one cutting edge. This design allows for efficient chip evacuation and helps prevent chip clogging in softer materials like aluminum.

2、High Helix Angle:

Single flute end mills typically have a high helix angle, often around 30 to 45 degrees. This high helix angle aids in effective chip removal, reduces cutting forces, and minimizes the risk of workpiece deformation.

3、Large Chip Clearance:

The single flute design provides ample space for aluminum chips to be evacuated from the cutting area, preventing chip recutting and tool wear.

4、Optimized Geometry:

These end mills are engineered with geometry optimized for aluminum machining. The cutting edge geometry helps achieve smoother finishes and extends tool life.

5、Balanced Cutting:

Single flute end mills are known for their ability to provide a balanced and stable cutting performance, which is especially important when working with softer materials like aluminum.

6、Reduced Heat Buildup:

The single flute design allows for efficient heat dissipation during the machining process, minimizing the risk of workpiece distortion due to excessive heat.

7、High Material Removal Rates:

Single flute end mills are excellent at removing material quickly, making them suitable for roughing and bulk material removal operations.

8、Compatibility with High-Speed Machining (HSM):

These end mills are often used in high-speed machining applications due to their ability to handle high spindle speeds without compromising tool performance.

9、Versatility:

While primarily designed for aluminum, single flute end mills can also be used for machining other non-ferrous materials like brass, copper, and plastics.

10、Diameter Range:

Single flute end mills are available in a range of diameters to suit various machining needs, from small-scale detail work to larger material removal tasks.

11、Coating Options:

Some single flute end mills come with specialized coatings like TiAlN (Titanium Aluminum Nitride) or TiCN (Titanium Carbonitride), which can further enhance tool life and performance.

12、Shank Styles:

These end mills are available with various shank styles, including straight shank and shank with a reduced neck, to accommodate different types of milling machines and setups.

Advantages of Single Flute End Mill For Aluminum:

1、Efficient Chip Evacuation:

Single flute end mills have a single cutting edge, providing ample space for chips to be quickly and efficiently evacuated from the cutting area. This reduces the risk of chip buildup and tool wear.

2、Reduced Cutting Forces:

The single flute design reduces cutting forces, making it easier on the machine and allowing for higher cutting speeds and feed rates. This results in faster material removal and shorter machining times.

3、Minimized Heat Buildup:

Single flute end mills effectively dissipate heat during machining. This helps maintain lower operating temperatures, reducing the likelihood of workpiece deformation or surface defects caused by excessive heat.

4、Smooth Surface Finish:

Single flute end mills offer improved stability and reduce the likelihood of chatter or vibrations. This results in a smoother and more precise machined surface finish.

5、Enhanced Stability and Balance:

The single flute design provides better stability and balance during machining, particularly at high spindle speeds. This contributes to more accurate and consistent cuts, reducing the need for additional finishing processes.

6、High Material Removal Rates:

Thanks to efficient chip evacuation and lower cutting forces, single flute end mills excel at removing large volumes of material quickly. They are ideal for roughing operations and bulk material removal.

7、Reduced Risk of Workpiece Damage:

With lower cutting forces and efficient chip evacuation, there is a reduced risk of workpiece damage due to tool or chip interactions, enhancing overall machining safety.

8、Compatibility with High-Speed Machining (HSM):

Single flute end mills are well-suited for high-speed machining applications, where elevated spindle speeds are essential for productivity. They maintain stability and performance at higher cutting speeds.

9、Cost-Effective:

Single flute end mills can be cost-effective due to their longer tool life compared to multi-flute end mills in aluminum machining applications. They often require fewer tool changes and replacements.

10、Versatility:

While primarily designed for aluminum, single flute end mills can also be used for other non-ferrous materials such as brass, copper, and plastics, making them versatile tools in various industries.

11、Ease of Use:

Machinists often find single flute end mills easy to work with, especially in applications where operator skill and experience are factors.

Coatings of Single Flute End Mill For Aluminum:

The purpose of applying a coating to a Single Flute End Mill For Aluminum is to enhance its performance, durability, and overall effectiveness in various machining operations.

Titanium Nitride (TiN):

TiN is a popular coating choice for Single Flute End Mill For Aluminum. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.

Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.

Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.

Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.

Applications of Single Flute End Mill For Aluminum：

1、Roughing Operations:

Single flute end mills are excellent for roughing aluminum surfaces, where the goal is to remove a large amount of material quickly. Their efficient chip evacuation and reduced cutting forces make them ideal for this purpose.

2、Slot Milling:

When machining slots in aluminum workpieces, single flute end mills provide efficient chip removal and prevent chip congestion, resulting in clean and precise slot cuts.

3、Pocketing:

These end mills are suitable for pocketing or cavity machining in aluminum. They can efficiently remove material from the interior of a workpiece while maintaining stability and minimizing heat buildup.

4、Profile Milling:

Single flute end mills are used for contouring and profiling aluminum components. Their stability and reduced cutting forces help achieve accurate and smooth profiles.

5、Facing and Surface Milling:

When facing or milling large flat surfaces in aluminum, single flute end mills excel in maintaining surface quality and reducing the risk of chatter or vibration.

6、Engraving:

Single flute end mills can be used for engraving alphanumeric characters, logos, or decorative patterns on aluminum surfaces with precision and clarity.

7、Aluminum Sheet and Plate Machining:

These end mills are suitable for cutting aluminum sheets and plates to size, whether in sheet metal fabrication or general machining tasks.

8、Aluminum Extrusion Machining:

Aluminum extrusions, used in various industries, can be efficiently machined and modified using single flute end mills for tasks like slotting, drilling, and profiling.

9、Aluminum Casting Cleanup:

Single flute end mills are effective for removing excess material, casting flash, or burrs from aluminum castings, improving the final product's quality.

10、Aluminum Composite Materials:

They can be used for machining aluminum composite panels, commonly used in the construction and signage industries, while ensuring clean cuts and minimal delamination.

11、Aluminum Heat Sinks:

Machining aluminum heat sinks for electronics and thermal management applications benefits from the efficient material removal and reduced heat generation of single flute end mills.

12、Prototype Machining:

In rapid prototyping and small-batch production, these end mills provide a cost-effective solution for machining aluminum prototypes with precision.

13、Aerospace Components:

Single flute end mills are used to machine aluminum parts in the aerospace industry, where precision, surface finish, and material removal rates are critical.

14、Automotive Components:

Many automotive parts, such as brackets, housings, and panels, are made from aluminum and can be efficiently machined using single flute end mills.

15、Electronics Enclosures:

Machining aluminum enclosures for electronic devices benefits from the reduced risk of heat-induced damage to sensitive components when using single flute end mills.

Video Of Single Flute End Mill For Aluminum

FAQs of Single Flute End Mill For Aluminum

1、What is a single flute end mill for aluminum?

A single flute end mill for aluminum is a cutting tool with a single cutting edge designed for machining aluminum and other non-ferrous materials. Its unique design helps with efficient chip evacuation and reduced cutting forces.

2、How does a single flute end mill differ from multi-flute end mills?

Single flute end mills have only one cutting edge, whereas multi-flute end mills have multiple cutting edges. Single flute end mills are particularly well-suited for aluminum due to their ability to efficiently remove material and prevent chip clogging.

3、What are the advantages of using a single flute end mill for aluminum?

Some advantages include efficient chip evacuation, reduced cutting forces, minimized heat buildup, improved surface finish, and stability during machining. They are also cost-effective due to longer tool life in aluminum applications.

4、Can I use a single flute end mill for aluminum on other materials?

While primarily designed for aluminum, single flute end mills can also be used for machining other non-ferrous materials like brass, copper, and plastics. They may not perform as effectively on harder materials like steel.

5、What types of aluminum alloys can be machined with a single flute end mill?

Single flute end mills are suitable for machining various aluminum alloys, including 6061, 7075, and 2024, as well as cast aluminum and aluminum composite materials.

6、How do I choose the right single flute end mill for my aluminum machining project?

Consider factors such as the specific aluminum alloy, desired cutting parameters, machine horsepower, and tool diameter. Consult the manufacturer's recommendations and cutting speed charts for guidance.

7、What are the recommended cutting speeds and feeds for single flute end mills in aluminum machining?

The recommended speeds and feeds can vary depending on the specific end mill and machining setup. It's essential to consult the manufacturer's guidelines or use machining software to determine the optimal parameters.

8、Can I resharpen a dull single flute end mill for aluminum?

Resharpening single flute end mills requires specialized equipment and expertise. While it is possible, it's often more cost-effective to replace the tool, especially if it is heavily worn.

9、Are there any safety precautions I should take when using single flute end mills for aluminum?

Always wear appropriate personal protective equipment (PPE), including safety glasses and hearing protection. Ensure that your workpiece is securely clamped, and follow best practices for machine operation to prevent accidents.

10、Do single flute end mills work well in high-speed machining (HSM) applications?

Yes, single flute end mills are suitable for HSM applications, as they can handle higher spindle speeds while maintaining stability and performance, which can lead to increased productivity.

FAQs for the factory :

1、Are you a factory?

Yes, we are facotry. Founded in 2004，Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.

2、How to select models?

Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.

3、Do you offer OEM & ODM service?

Yes.We can supply OEM&ODM and make customized design for any specific application.

4、How can we know the product quality?

We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.

5、What's the delivery time?

Non-standard tools 5-10 Working days，Standard tools usually 1-2 days.
