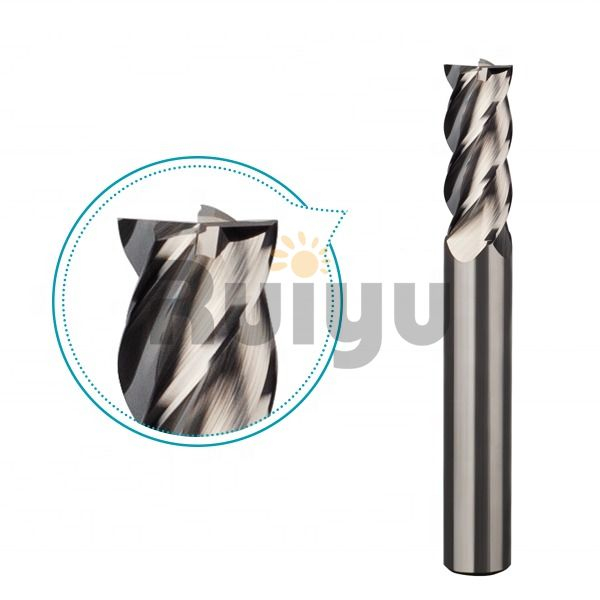

Solid Carbide 4 Flute Square End Mill for Aluminum
4 Flute
Spiral
High Speed Cutting
Alloy Steel, Tool Steel,Stainless Steel, High-temp Alloys, Titanium Alloys, Non-ferrous Alloys
TiAlN, TiSiN, Nano
0.005-0.01
Stub, Standard, Extra-Long,38-330mm
Availability: | |
---|---|
Quantity: | |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D1*3*D4*50 | 1 | 3 | 4 | 50 |
D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
D2*6*D4*50 | 2 | 6 | 4 | 50 |
D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
D3*8*D4*50 | 3 | 8 | 4 | 50 |
D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
D4*10*D4*50 | 4 | 10 | 4 | 50 |
D5*13*D6*50 | 5 | 13 | 6 | 50 |
D6*15*D6*50 | 6 | 15 | 6 | 50 |
D8*20*D8*60 | 8 | 20 | 8 | 60 |
D10*25*D10*75 | 10 | 25 | 10 | 75 |
D12*30*D12*75 | 12 | 30 | 12 | 75 |
D14*45*D14*100 | 14 | 45 | 14 | 100 |
D16*45*D16*100 | 16 | 45 | 16 | 100 |
D18*45*D18*100 | 18 | 45 | 18 | 100 |
D20*45*D20*100 | 20 | 45 | 20 | 100 |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D4*12*D4*75 | 4 | 12 | 4 | 75 |
D4*16*D4*100 | 4 | 16 | 4 | 100 |
D6*20*D6*75 | 6 | 20 | 6 | 75 |
D6*30*D6*100 | 6 | 30 | 6 | 100 |
D8*25*D8*75 | 8 | 25 | 8 | 75 |
D8*35*D8*100 | 8 | 35 | 8 | 100 |
D10*40*D10*100 | 10 | 40 | 10 | 100 |
D12*45*D12*100 | 12 | 45 | 12 | 100 |
D6*35*D6*150 | 6 | 35 | 6 | 150 |
D8*40*D8*150 | 8 | 40 | 8 | 150 |
D10*50*D10*150 | 10 | 50 | 10 | 150 |
D12*60*D12*150 | 12 | 60 | 12 | 150 |
D14*65*D14*150 | 14 | 65 | 14 | 150 |
D16*70*D16*150 | 16 | 70 | 16 | 150 |
D18*70*D18*150 | 18 | 70 | 18 | 150 |
D20*70*D20*150 | 20 | 70 | 20 | 150 |
Four-flute end mills have four cutting edges, allowing for efficient material removal and improved stability during machining. The additional flutes distribute the cutting load, enhancing the tool's durability and performance.
These end mills are often made from high-quality materials such as carbide or high-speed steel. Carbide end mills are popular for their exceptional hardness, wear resistance, and heat resistance, ensuring longevity in high-speed aluminum machining.
The helix angle, or the angle between the cutting edge and the tool axis, is designed for optimal chip evacuation. An appropriate helix angle ensures efficient material removal, reduces chip clogging, and prevents tool overheating.
Some designs feature a variable helix or pitch, where the helix angle changes along the cutting edge. This variation helps in minimizing vibrations and chatter during machining, leading to improved surface finish and accuracy.
Four-flute end mills for aluminum often have a small corner radius on the cutting tip. This radius strengthens the tip, reducing the likelihood of breakage, especially during heavy or interrupted cuts.
These end mills can come with specialized coatings like TiCN (Titanium Carbonitride) or TiAlN (Titanium Aluminum Nitride). Coatings enhance wear resistance, reduce friction, and dissipate heat, prolonging the tool life and improving overall performance.
The flute geometry is optimized for aluminum machining. Proper flute design facilitates efficient chip evacuation, prevents chip packing, and ensures a smooth cutting action, leading to superior surface finishes.
Four-flute end mills feature sharp cutting edges that provide clean and precise cuts. These sharp edges are crucial for achieving fine details and high-quality surface finishes on aluminum workpieces.
The design ensures the end mill's rigidity, allowing for stable and vibration-free machining. Reduced vibrations lead to improved accuracy, extended tool life, and enhanced overall machining performance.
These end mills are designed to withstand high speeds commonly used in aluminum machining. Their construction and geometry are optimized to handle the rapid movement and forces involved in high-speed cutting operations.
Four flutes create more cutting edges, allowing for efficient chip evacuation. This reduces the risk of chip buildup, ensuring smooth and uninterrupted machining. Proper chip evacuation leads to better surface finishes and prolonged tool life.
With more flutes engaged in the material simultaneously, the tool's stability increases. This reduces chatter and vibration during cutting, leading to improved accuracy and surface quality, especially in high-speed machining operations.
The additional cutting edges provided by a 4-flute end mill enable faster material removal rates. This higher efficiency is particularly advantageous in applications where productivity and speed are essential, such as large-scale manufacturing processes.
More flutes distribute the cutting load across multiple edges, reducing wear on individual edges. As a result, the tool wears more evenly, leading to a longer tool life. This durability makes 4-flute end mills a cost-effective choice in the long run, as they require less frequent replacements.
The increased number of flutes allows for smoother cutting action. This results in a finer surface finish on the machined part, reducing the need for additional finishing processes. Parts machined with a 4-flute end mill often require minimal post-processing.
While particularly effective in aluminum, 4-flute end mills are versatile tools that can handle a wide range of materials. They can be used in applications involving other non-ferrous metals, plastics, and composites, making them suitable for diverse manufacturing needs.
The multiple flutes provide more pathways for heat to dissipate away from the cutting edges. Efficient heat dissipation is crucial when machining aluminum, as excessive heat can lead to workpiece deformation or premature tool wear. A 4-flute end mill helps maintain a cooler cutting environment.
The increased number of flutes allows for precise contouring and profiling of aluminum components. This is particularly beneficial in industries like aerospace and automotive, where intricate and accurate detailing is essential for parts and components.
Due to the higher material removal rates and improved efficiency, using a 4-flute end mill can lead to reduced machining times. This time-saving benefit is significant in high-volume production environments, where optimizing production speed is a priority.
4-flute end mills provide consistent and reliable performance, ensuring uniformity in the machined parts. Their stable cutting action and extended tool life contribute to reliable and repeatable machining processes.
The purpose of applying a coating to a 4 Flute End Mill for Aluminum is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for 4 Flute End Mill for Aluminum. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
4-flute end mills are used to machine various aluminum aerospace components, including aircraft panels, structural parts, and engine components. The stability and precision of these end mills ensure the high-quality machining necessary for aerospace applications.
In the automotive industry, 4-flute end mills are employed for machining aluminum parts such as engine blocks, transmission components, and suspension parts. Their ability to handle high-speed machining and provide excellent surface finish makes them ideal for automotive applications.
4-flute end mills are used to create aluminum enclosures for electronic devices. These end mills provide precise cuts and smooth finishes, ensuring that electronic components fit perfectly into the enclosures.
Prototyping companies and rapid manufacturing facilities use 4-flute end mills for machining aluminum prototypes. Their ability to achieve intricate details and high precision is crucial in the rapid prototyping process.
Machinists use 4-flute end mills for creating molds and dies for various applications. Whether it's for injection molding or die casting, these end mills can efficiently shape aluminum blocks into precise molds.
4-flute end mills are utilized in the production of decorative aluminum architectural components. These components include ornamental panels, trims, and artistic features used in buildings, interior designs, and public spaces.
Manufacturers of medical devices use 4-flute end mills to machine aluminum parts like instrument panels, casings, and components for medical imaging devices. The high precision of these end mills is crucial in the medical industry.
Machinists use 4-flute end mills to create custom tooling and fixtures for various applications. These tools and fixtures are used in manufacturing setups to ensure accurate and repeatable machining processes.
Educational institutions and research facilities utilize 4-flute end mills for research projects, prototype development, and educational purposes. Students and researchers can experiment with complex aluminum shapes for academic and scientific exploration.
Artists and sculptors use 4-flute end mills to create intricate aluminum sculptures and artworks. The precision and fine detailing capabilities of these end mills allow artists to express their creative visions in metal.
A 4-flute end mill is a cutting tool with four cutting edges used for milling operations. It is ideal for aluminum machining due to its stability, efficient chip evacuation, and ability to provide excellent surface finishes in softer materials like aluminum.
Compared to end mills with fewer flutes, a 4-flute end mill offers better chip evacuation, enhanced stability, and improved surface finishes. The additional cutting edges distribute the cutting forces, making them particularly effective for aluminum, reducing the risk of workpiece damage.
Yes, 4-flute end mills are suitable for high-speed machining of aluminum. Their stability, efficient chip evacuation, and enhanced surface finish capabilities make them well-suited for high-speed machining operations, resulting in faster material removal rates.
Consider the material composition of the end mill (preferably carbide for durability), the coating (such as TiCN or TiAlN for wear resistance), flute geometry, and the specific application requirements. Choosing the right combination ensures optimal performance and extended tool life.
Yes, 4-flute end mills are capable of achieving intricate details and fine finishes in aluminum parts. The additional flutes provide more cutting edges, allowing for precise contouring and detailing, making them ideal for applications where high surface quality is crucial.
To maximize tool life, it's essential to use appropriate cutting speeds and feeds, provide proper cooling and lubrication, and avoid excessive radial and axial engagements. Using the correct parameters ensures efficient cutting without overheating the tool, leading to longer tool life.
Yes, 4-flute end mills are suitable for roughing operations in aluminum. Their stable cutting performance and efficient chip evacuation make them effective for material removal while maintaining precision, especially in high-volume machining tasks.
Despite potentially higher initial costs, 4-flute end mills are often cost-effective in the long run. Their extended tool life, ability to handle high-speed operations, and superior surface finishes reduce overall machining costs and increase productivity, making them a wise investment for aluminum machining applications.
Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.
Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.
Yes.We can supply OEM&ODM and make customized design for any specific application.
We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.
Non-standard tools 5-10 Working days,Standard tools usually 1-2 days.
