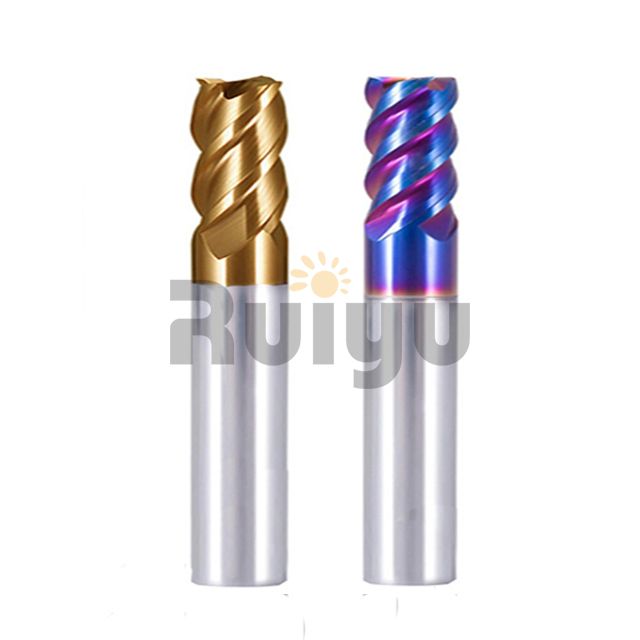

Solid Carbide 4 Flute Square End Mill
4 Flute
Spiral
High Speed Cutting
Cast Iron, Alloy Steel, Tool Steel,Stainless Steel, High-temp Alloys, Titanium Alloys, Non-ferrous Alloys
TiAlN, TiSiN, Nano
0.005-0.01
Stub, Standard, Extra-Long,38-330mm
Availability: | |
---|---|
Quantity: | |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D14*45*D14*100 | 14 | 45 | 14 | 100 |
Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
D14*65*D14*150 | 14 | 65 | 14 | 150 |
Carbide end mills can withstand high temperatures generated during the milling process, allowing for faster cutting speeds and increased productivity.
The hardness and heat resistance of carbide square end mills contribute to their superior cutting performance.
Carbide square end mills offer high rigidity and stability during cutting, minimizing tool deflection and vibrations.
The rigidity and stability of carbide square end mills help minimize chatter during the milling process.
Carbide square end mills are renowned for their exceptional hardness. This hardness allows them to maintain their cutting edge for longer periods, resulting in extended tool life and reduced tool replacement costs.
Carbide end mills exhibit high heat resistance, enabling them to withstand the elevated temperatures generated during the machining process. This feature allows for higher cutting speeds and increased productivity.
The combination of hardness and heat resistance in carbide square end mills contributes to their superior cutting performance. They can efficiently remove material and create precise square-shaped features with excellent surface finishes.
With their exceptional cutting performance and heat resistance, carbide square end mills contribute to increased productivity. They allow for higher cutting speeds, reducing machining time and increasing overall efficiency.
Carbide end mills often feature multiple flutes, which aid in efficient chip evacuation. This helps prevent chip clogging and enhances the surface finish of the machined part.
Carbide square end mills offer high levels of stability and rigidity during cutting. This characteristic minimizes tool deflection and vibrations, resulting in improved accuracy and dimensional precision.
Carbide square end mills are available in a wide range of sizes, flute configurations, and cutting edge geometries. This allows for precise tool selection based on specific machining requirements.
The purpose of applying a coating to a carbide end mill is to enhance its performance, durability, and overall effectiveness in various machining operations.
TiN is a popular coating choice for carbide square end mills. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.
TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.
AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.
DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.
A 14mm end mill, with its 14mm diameter cutting edge, is a versatile cutting tool used in various machining applications. Its larger size makes it suitable for heavier cuts and more demanding tasks. Here are some common applications of a 14mm end mill:
14mm end mills are versatile tools for general milling operations, including facing, contouring, and pocketing. They can efficiently remove material to achieve the desired shape or size.
Slotting operations, where narrow and deep channels are cut into a workpiece, often benefit from a 14mm end mill. This is useful for creating slots in brackets, keyways, and other components.
In profile milling, the end mill follows the contour or outline of the workpiece to create specific shapes or features. A 14mm end mill is ideal for detailed profile milling tasks in industries like aerospace, automotive, and mold making.
14mm end mills can be used for engraving, adding serial numbers, logos, or decorative patterns on various surfaces. This is valuable in industries like jewelry making, product branding, and custom woodworking.
While larger than some end mills, a 14mm end mill can still be used for precision micro-machining tasks that require fine features. This is important in industries like electronics, aerospace, and medical device manufacturing.
During the prototyping phase of product development, a 14mm end mill helps create small-scale models and prototypes with precision and fine details. This is common in industries ranging from automotive to consumer electronics.
In the manufacturing of electronic components, including printed circuit boards (PCBs), 14mm end mills are used for precision machining. They create small traces, drill holes, and mill features on PCBs.
Tool and die makers use 14mm end mills for creating small features and details on molds, dies, and tooling used in various manufacturing processes.
When producing small components with fine details, a 14mm end mill is valuable. Industries such as watchmaking, precision engineering, and medical devices benefit from the accuracy it offers.
Woodworkers use 14mm end mills for fine woodworking, crafting intricate designs or patterns into wooden surfaces. This is especially common in custom furniture and cabinetry.
In the automotive sector, 14mm end mills are employed for machining smaller components like engine parts, brackets, and connectors, which require precision and intricate detailing.
For machining aerospace components, 14mm end mills are used in applications where precision and small-scale features are essential, such as aircraft structural parts and engine components.
A 14mm End Mill is a cutting tool used in machining processes, such as milling and drilling. It has a cylindrical shape with cutting edges on one end and a shank on the other, typically measuring 14mm in diameter.
End Mills are primarily used for cutting and shaping various materials, including metal, wood, plastic, and composites. They are commonly used in milling machines to remove material and create precise shapes and features.
Selecting the right End Mill depends on several factors, including the material you're cutting, the desired surface finish, and the specific machining operation. It's essential to consider factors such as material hardness, tool geometry, coating, and cutting speed to make the right choice.
A 14mm End Mill can cut a wide range of materials, including steel, aluminum, brass, copper, plastics, and wood. The choice of material largely depends on the End Mill's design, sharpness, and coating.
To ensure the longevity and performance of your End Mill, it's crucial to keep it clean, sharp, and free from chips and debris. Regularly inspect and re-sharpen or replace the End Mill when it shows signs of wear.
Always wear appropriate personal protective equipment (PPE), such as safety glasses and hearing protection. Secure your workpiece firmly in place, use appropriate feeds and speeds, and be cautious to prevent accidents and injury.
While it's possible to use an End Mill in a handheld drill for light work, it's not recommended for precision machining. End Mills are typically used in milling machines or CNC routers for accurate and controlled cutting.
Common types of 14mm End Mills include square end mills (for general milling), ball nose end mills (for contouring and 3D profiling), and flat end mills (for flat-bottomed holes and surfaces). Specialized End Mills like corner radius and chamfer mills are also available.
Yes, you can use a 14mm End Mill for both roughing (material removal) and finishing (creating smooth surfaces). However, you may need to adjust cutting parameters, such as speed and feed, based on the specific operation.
Yes, we are facotry. Founded in 2004,Ruiyu Tools has established itself as a trusted provider of high-quality drill bits, end mills, and other non-standard tools.
Before purchasing, please contact us to confirm model No. and drawings to avoid any misunderstanding.
Yes.We can supply OEM&ODM and make customized design for any specific application.
We suggest you ording a sample. And you can also send us email with detailed photos and specifications for checking if you cannot get enough information in the product page.
Non-standard tools 5-10 Working days,Standard tools usually 1-2 days.
