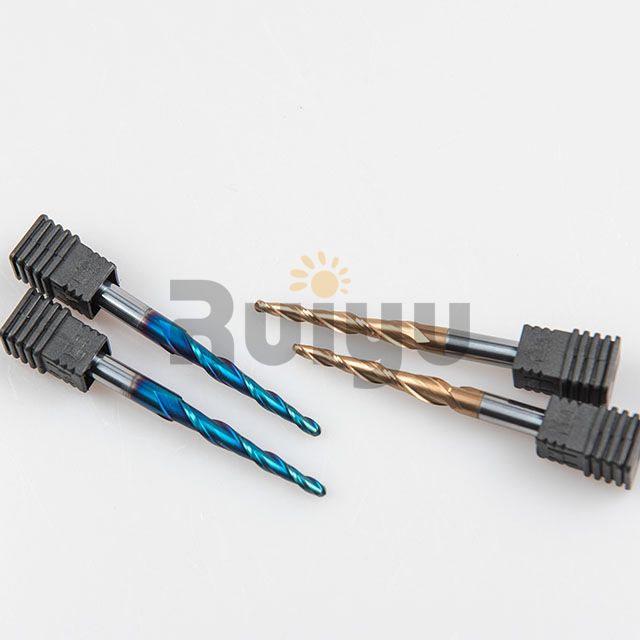

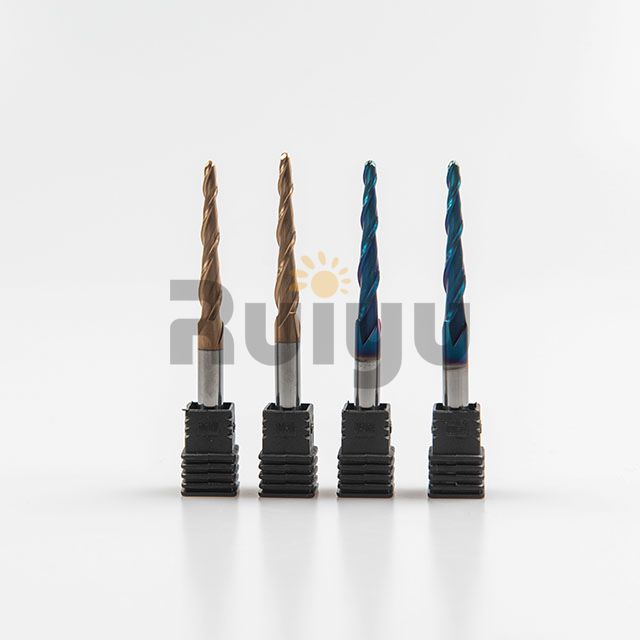

Tapered Ball Nose End Mill

Tapered Ball Nose End Mill Specifications

Model No.	Flute Diameter (mm)	Flute length (mm)	Shank Diameter (mm)	Overall length (mm)
R0.25*15*D3.175*38	R0.25	15	3.175	38
R0.5*15*D3.175*38	R0.5	15	3.175	38
R0.75*15*D3.175*38	R0.75	15	3.175	38
R1.0*15*D3.175*38	R1.0	15	3.175	38
R0.25*15*D4*50	R0.25	15	4	50
R0.5*15*D4*50	R0.5	15	4	50
R0.75*15*D4*50	R0.75	15	4	50
R1.0*15*D4*50	R1.0	15	4	50
R0.25*20.5*D4*50	R0.25	20.5	4	50
R0.5*20.5*D4*50	R0.5	20.5	4	50
R0.75*20.5*D4*50	R0.75	20.5	4	50
R1.0*20.5*D4*50	R1.0	20.5	4	50
R0.25*20.5*D6*50	R0.25	20.5	6	50
R0.5*20.5*D6*50	R0.5	20.5	6	50
R0.75*20.5*D6*50	R0.75	20.5	6	50
R1.0*20.5*D6*50	R1.0	20.5	6	50
R0.25*30.5*D6*75	R0.25	30.5	6	75
R0.5*30.5*D6*75	R0.5	30.5	6	75
R0.75*30.5*D6*75	R0.75	30.5	6	75
R1.0*30.5*D6*75	R1.0	30.5	6	75
R1.5*30.5*D6*75	R1.5	30.5	6	75
R2.0*30.5*D6*75	R2.0	30.5	6	75
R0.5*47*D8*85	R0.5	47	8	85
R1.0*47*D8*85	R1.0	47	8	85
R1.5*47*D8*85	R1.5	47	8	85
R2.0*47*D8*85	R2.0	47	8	85
R0.5*60*D8*100	R0.5	60	8	100
R1.0*60*D8*100	R1.0	60	8	100
R1.5*60*D8*100	R1.5	60	8	100
R2.0*60*D8*100	R2.0	60	8	100
R2.0*70*D10*110	R2.0	70	10	110
R2.0*70*D12*120	R2.0	70	12	120

Tapered Ball Nose End Mill Features

1、Tapered Design:

The end mill has a tapered shape, meaning it gradually decreases in diameter from the base to the tip. This design allows for the creation of tapered or conical shapes and intricate 3D contours.

2、Ball Nose Geometry:

The cutting end of the tool is ball-shaped, featuring a rounded profile. This geometry is effective for contouring and profiling operations, as it produces smooth surfaces and eliminates sharp corners.

3、Variable Helix or Pitch Options:

Some tapered ball nose end mills may feature variable helix or pitch options. This design helps reduce vibrations and chatter during machining, especially in challenging materials or high-speed applications.

4、Multiple Flutes:

Tapered ball nose end mills often have multiple cutting flutes (typically 2 or more). The presence of multiple flutes helps in efficient material removal and provides stability during the cutting process.

5、Radial Relief:

The radial relief on the cutting edges allows for improved tool strength and reduced cutting forces. This feature is particularly beneficial in applications requiring smooth contouring and reduced tool deflection.

6、High Precision:

Tapered ball nose end mills are manufactured with high precision to achieve tight tolerances. This level of accuracy is crucial for applications where fine details and smooth surfaces are essential.

7、Suitability for 3D Machining:

The tapered ball nose design is especially well-suited for 3D machining applications. It allows the tool to follow complex contours and create intricate shapes with smooth transitions.

8、Versatility Across Materials:

Tapered ball nose end mills are versatile and can be used across a variety of materials, including metals, plastics, and wood. This versatility makes them suitable for applications in various industries, including aerospace, automotive, and mold making.

9、Reduced Radial Cutting Forces:

The tapered design helps distribute cutting forces radially, reducing the pressure on individual cutting edges. This contributes to improved stability during machining and helps achieve accurate results.

10、Efficient Chip Evacuation:

The multiple flutes aid in efficient chip evacuation, preventing chip buildup during cutting. Efficient chip removal is crucial for maintaining a smooth machining process and avoiding potential tool and workpiece damage.

11、Smooth Surface Finish:

The combination of the ball nose geometry and the tapered design produces a smooth surface finish on the machined part. This is particularly important in applications where a high-quality surface is required.

12、Reduced Tool Deflection:

Tapered ball nose end mills are designed to minimize tool deflection during machining. This is essential for maintaining precision and achieving accurate results, especially in applications with tight tolerances or intricate geometries.

Tapered Ball Nose End Mill Advantages:

1、3D Machining Capability:

One of the primary advantages of a tapered ball nose end mill is its ability to perform 3D machining with precision. The tapered design and ball nose geometry allow for smooth transitions and accurate detailing in complex surfaces and contours.

2、Smooth Surface Finish:

The ball nose geometry of the cutting end produces a smooth surface finish on the machined part. This is crucial for applications where a high-quality surface is desired without the need for additional finishing steps.

3、Elimination of Sharp Corners:

The rounded profile of the ball nose eliminates sharp corners during machining, resulting in smoother and more aesthetically pleasing finished products. This is particularly advantageous in industries where design aesthetics matter.

4、Reduced Tool Deflection:

The tapered design of the end mill contributes to reduced tool deflection during machining. This is important for maintaining precision and dimensional accuracy, especially in applications with tight tolerances or intricate geometries.

5、Versatility Across Materials:

Tapered ball nose end mills are versatile and can be used across a variety of materials, including metals, plastics, and wood. This versatility makes them suitable for a wide range of applications in different industries.

6、Efficient Material Removal:

The multiple flutes, combined with the ball nose geometry, enable efficient material removal. This is particularly beneficial in roughing or semi-finishing operations where rapid stock removal is required.

7、Improved Chip Evacuation:

The design of tapered ball nose end mills facilitates efficient chip evacuation during machining. This helps prevent chip buildup, reducing the risk of tool damage and ensuring a smoother machining process.

8、Variable Helix Options for Stability:

Some tapered ball nose end mills come with variable helix or pitch options. This feature helps minimize vibrations and chatter during machining, especially at high cutting speeds, contributing to improved overall stability.

9、Reduced Radial Cutting Forces:

The tapered design helps distribute cutting forces radially, reducing the pressure on individual cutting edges. This contributes to improved stability during machining and helps achieve accurate and consistent results.

10、High Precision and Tight Tolerances:

Tapered ball nose end mills are manufactured with high precision, allowing for the achievement of tight tolerances. This precision is crucial in applications where fine details and accuracy are paramount.

11、Suitability for Contouring and Profiling:

The combination of the tapered shape and ball nose geometry makes these end mills well-suited for contouring and profiling operations. This versatility is valuable in applications where complex shapes need to be machined.

12、Cost-Effective Machining:

Despite their precision capabilities, tapered ball nose end mills are often cost-effective solutions. Their efficiency in material removal and ability to reduce the need for secondary finishing processes contribute to overall cost savings.

Tapered Ball Nose End Mill Coatings:

The purpose of applying a coating to a carbide Tapered Ball Nose End Mill is to enhance its performance, durability, and overall effectiveness in various machining operations.

1、Titanium Nitride (TiN):

TiN is a popular coating choice for carbide Tapered Ball Nose End Mill. It offers excellent wear resistance and provides a protective layer on the tool's surface, reducing friction and extending tool life. TiN coatings are effective when machining non-ferrous materials and can enhance performance in general-purpose milling applications.

2、Titanium Carbonitride (TiCN):

TiCN coatings offer improved hardness and heat resistance compared to TiN. They are suitable for machining ferrous materials, including steel and cast iron. TiCN coatings provide excellent wear resistance, reduced friction, and increased tool life.

3、Aluminum Titanium Nitride (AlTiN):

AlTiN coatings are known for their exceptional hardness, high-temperature resistance, and excellent wear resistance. They are suitable for machining abrasive materials, such as hardened steels and stainless steels. AlTiN coatings provide extended tool life and enhanced performance in high-speed machining applications.

4、Diamond-Like Carbon (DLC):

DLC coatings offer excellent hardness, low friction, and high lubricity. They are effective when machining aluminum, copper, and non-ferrous materials. DLC coatings can reduce built-up edge and enhance the chip flow, resulting in improved surface finish and reduced cutting forces.

Tapered Ball Nose End Mill Applications：

Tapered ball nose end mills are versatile cutting tools used in various machining applications due to their unique design and capabilities. Here are some common applications for tapered ball nose end mills:

1、3D Contouring and Sculpting:

Tapered ball nose end mills are excellent for creating intricate and detailed 3D surfaces and contours on workpieces. They can follow complex tool paths and produce smooth curves, making them ideal for sculpting and artistic designs.

2、Mold and Die Making:

In mold and die manufacturing, where precision and fine details are crucial, tapered ball nose end mills excel at creating smooth finishes and intricate features. They can produce the small radii and steep walls often required in these applications.

3、Engraving:

Tapered ball nose end mills are commonly used for engraving tasks, such as creating text, logos, or decorative patterns on materials like wood, plastic, and metal. The gradual taper allows for precise control over the depth of cut and the width of the engraved lines.

4、CNC Carving:

For CNC carving applications, where a CNC machine is used to cut away material and create intricate designs, tapered ball nose end mills are a popular choice. They can efficiently remove material while maintaining smooth surfaces and sharp details.

5、Aerospace Components:

Tapered ball nose end mills can be used to create complex features on aerospace components, such as turbine blades, where smooth contours and accurate geometries are essential for efficient airflow and performance.

6、Jewelry Making:

In jewelry manufacturing, where intricate and artistic designs are common, tapered ball nose end mills are valuable tools. They allow jewelers to create precise patterns, textures, and engravings on various materials.

7、Woodworking:

Tapered ball nose end mills are used in woodworking to create detailed designs, smooth contours, and intricate joinery. They are especially useful for crafting decorative edges, intricate inlays, and other ornate woodworking elements.

8、Medical Devices:

The medical industry often requires precision machining for components like implants and surgical instruments. Tapered ball nose end mills can help create intricate features with high precision, ensuring the functionality and reliability of medical devices.

9、Rapid Prototyping:

During the prototyping phase of product development, using tapered ball nose end mills allows designers and engineers to quickly create functional prototypes with accurate and complex geometries.

10、Automotive Components:

Tapered ball nose end mills are used in the automotive industry for machining components like molds for interior and exterior parts, as well as for creating detailed features on engine components.

These applications highlight the versatility and precision that tapered ball nose end mills offer. When using these tools, it's important to consider factors such as material type, cutting parameters, and tool geometry to achieve the desired results. Always follow best practices for tool selection and machining techniques to ensure successful and efficient operations.

Video Of Tapered Ball Nose End Mill

FAQs for Tapered Ball Nose End Mill

1、What is a tapered ball nose end mill?

A tapered ball nose end mill is a type of cutting tool used in machining operations. It features a gradually tapered profile along the length of the cutting portion, ending in a rounded ball nose. This design allows for smoother cutting motions and precise contouring.

2、What are the advantages of using a tapered ball nose end mill?

Tapered ball nose end mills offer several advantages, including the ability to create intricate 3D contours, smoother finishes, reduced tool deflection, improved chip evacuation, and the capability to reach tight spaces that traditional end mills might struggle with.

3、What materials can be machined using a tapered ball nose end mill?

Tapered ball nose end mills can be used on a variety of materials, including metals (such as steel, aluminum, and brass), plastics, wood, and composites. The material's hardness and the tool's coating should be considered for optimal results.

4、What are some common applications for tapered ball nose end mills?

Tapered ball nose end mills are commonly used for 3D contouring, engraving, mold making, die making, carving, woodworking, jewelry making, and other applications that require precision and intricate details.

5、How do I choose the right tapered ball nose end mill for my project?

Consider factors such as the material you're working with, the desired level of detail, the machine's capabilities, and the required surface finish. Pay attention to the tool's dimensions, taper angle, flute count, and coating when making your selection.

6、What is the difference between taper angle and included angle?

The taper angle of a tapered ball nose end mill refers to the angle of the taper along the length of the tool. The included angle, on the other hand, is the angle between the tool's central axis and the line connecting the tool tip to the center of the shank.

7、Can I use a tapered ball nose end mill for roughing operations?

Tapered ball nose end mills are better suited for finishing operations and fine detail work. For roughing and material removal, other types of end mills (such as flat end mills or roughing end mills) are more appropriate.

8、How should I set up my machine for using a tapered ball nose end mill?

Follow the manufacturer's guidelines for tool setup, including securing the workpiece properly, setting appropriate cutting parameters (feeds and speeds), and ensuring the machine is calibrated correctly.

9、What is the best way to prevent tool breakage when using a tapered ball nose end mill?

To prevent tool breakage, use appropriate cutting parameters, avoid excessive radial or axial engagement, and consider the tool's length and diameter in relation to the material being machined. Also, ensure the tool is properly secured in the holder.

10、How do I extend the tool life of a tapered ball nose end mill?

To extend tool life, use a proper tool holder, apply suitable cutting fluid, use the recommended cutting parameters, and monitor the tool for signs of wear. Replace the tool when it becomes dull or shows signs of damage.
