Choosing the proper material for your end mill is essential for achieving efficient machining results and extending tool life.

1、Workpiece Material:

Choose an end mill material that is compatible with the material you'll be machining. Different materials have varying hardness, abrasiveness, and thermal conductivity, which can affect tool wear and performance.

For example, carbide end mills are commonly used for machining hard materials like steel, while high-speed steel (HSS) end mills are suitable for softer materials like aluminum and plastics.

2、Cutting Conditions:

Consider the cutting conditions, such as cutting speed, feed rate, and depth of cut, when selecting the end mill material.

High-speed steel (HSS) end mills are suitable for lower cutting speeds and lighter cuts, while carbide end mills excel in high-speed and high-temperature machining environments.

3、Tool Rigidity and Wear Resistance:

Carbide end mills offer superior rigidity and wear resistance compared to HSS end mills, making them ideal for demanding machining applications and extended tool life.

HSS end mills are more economical and can be sharpened multiple times, but they may wear out faster in high-speed and heavy-duty machining operations.

4、Tool Coatings:

Consider using coated end mills to enhance tool performance and prolong tool life. Common coatings include TiN (Titanium Nitride), TiCN (Titanium Carbo-Nitride), TiAlN (Titanium Aluminum Nitride), and DLC (Diamond-Like Carbon), which provide increased hardness, lubricity, and resistance to wear and adhesion.

5、Cost and Budget:

Evaluate the cost of the end mill material relative to your budget and machining requirements. Carbide end mills typically have a higher upfront cost but offer longer tool life and better performance in many applications, potentially resulting in cost savings over time.

6、Machine Compatibility:

Ensure that your milling machine is capable of handling the chosen end mill material. Carbide end mills may require higher spindle speeds and more rigid machine setups compared to HSS end mills.

7、Application Specifics:

Consider any specific requirements of your machining application, such as surface finish, dimensional accuracy, and tool life expectations, when choosing the end mill material.

The number of flutes on an end mill influences various aspects of machining performance, including chip evacuation, surface finish, and cutting efficiency.

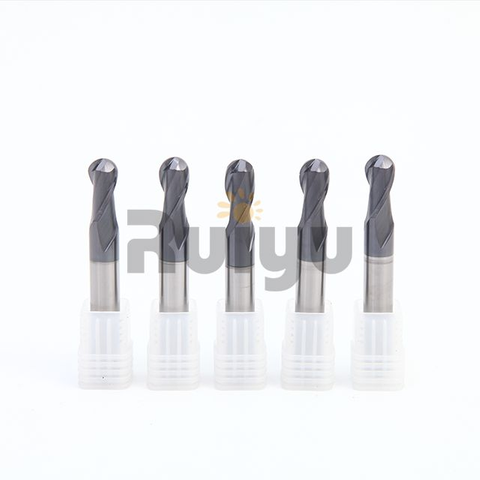

1、Two Flutes:

End mills with two flutes are commonly used for general-purpose milling operations.

They provide good chip evacuation and are suitable for softer materials and lighter cuts.

Two-flute end mills can offer higher feed rates and smoother finishes due to larger chip space between the flutes.

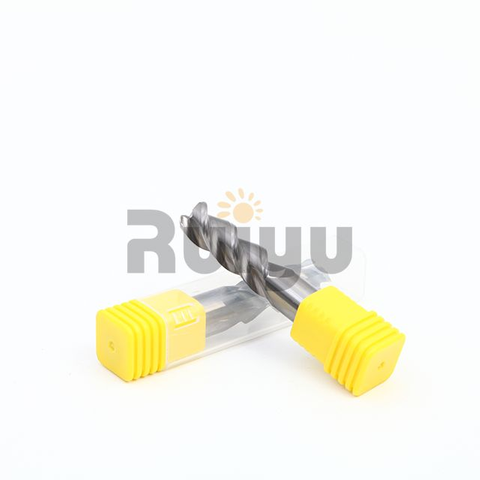

2、Three Flutes:

End mills with three flutes strike a balance between chip evacuation, cutting efficiency, and surface finish.

They are versatile and suitable for a wide range of materials and machining operations.

Three-flute end mills can provide good stability and rigidity while machining, especially in slotting and roughing applications.

3、Four Flutes:

End mills with four flutes offer increased stability and reduced chip load per tooth.

They are ideal for achieving better surface finishes, particularly in materials prone to work hardening or with higher cutting forces.

Four-flute end mills are commonly used in finishing operations and for machining harder materials.

4、More Than Four Flutes:

End mills with five or more flutes are designed for specific applications requiring higher feed rates, increased chip evacuation, and improved surface finish.

They are often used in high-speed machining and for finishing operations in materials like aluminum and other non-ferrous metals.

The size of the end mill you should use depends on several factors, including the specific machining operation, material being cut, desired feature size, and machine capabilities. Here are some general guidelines to help you choose the right size:

1、Feature Size:

Select an end mill diameter that matches the size of the features you need to create. For example, if you're machining a slot with a width of 0.25 inches, choose an end mill with a diameter close to 0.25 inches.

2、Machine Capability:

Consider the capabilities of your milling machine, including the maximum spindle speed and horsepower. Larger diameter end mills require more power and may not be suitable for machines with lower horsepower.

3、Cutting Depth:

The diameter of the end mill also affects the maximum cutting depth you can achieve in a single pass. Smaller diameter end mills are typically used for shallower cuts, while larger diameter end mills can handle deeper cuts.

4、Material Hardness:

Harder materials require smaller diameter end mills to prevent tool deflection and achieve better surface finish. For softer materials, larger diameter end mills can be used for increased material removal rates.

5、Aspect Ratio:

Consider the aspect ratio (length-to-diameter ratio) of the end mill. Longer end mills are more prone to deflection, especially in smaller diameters. Use shorter end mills for higher rigidity and accuracy, especially in deep machining operations.

6、Tool Overhang:

Minimize tool overhang to reduce vibration and improve stability during machining. Use shorter end mills or reduce the length of the tool stick-out if possible.

7、Tool Access:

Ensure the chosen end mill size provides adequate clearance and access to the machining area, especially in tight or confined spaces.
